Attributes
| Part Number | 2605-04-04-04-B |
|---|---|
| Is Series Page | 0 |
Description

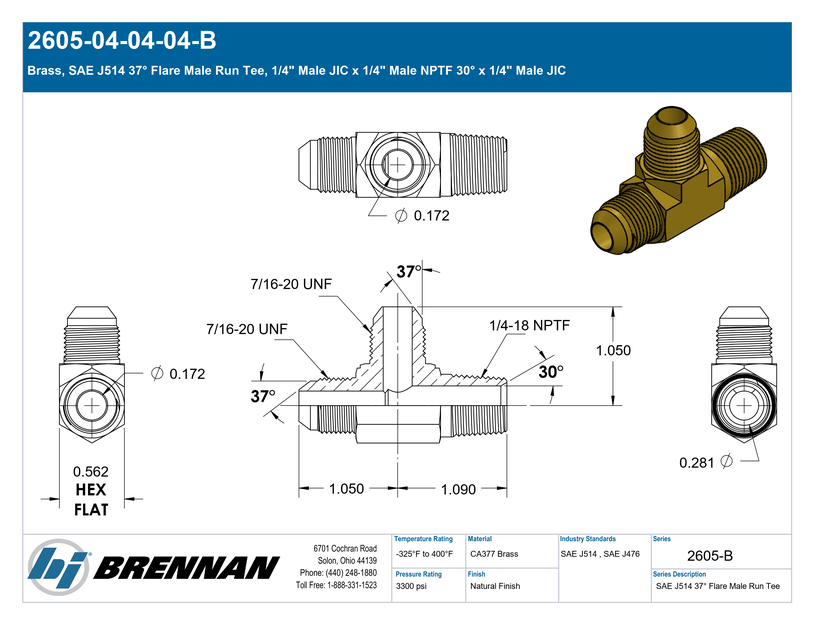

Brass, SAE J514 37° Flare Male Run Tee, 1/4" Male JIC x 1/4" Male NPTF 30° x 1/4" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection","Side 3 Connection Type":"Male JIC","Side 3 Tube OD":"1/4\"","Side 3 Thread Type":"7/16-20 UNF","Side 3 Standard":"SAE J514 - Class 2A Thread","Side 3 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Male Run Tee","Primary Material":"Brass","Material Grade":"CA377","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Hex/Wrench":"0.562","Weight":"0.14 lb"} |
| Performance Specifications | {"Working Pressure":"3300 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"13200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2028-4-4B","Parker Hose Part Number":"013T-4-4-4-B","Parker TFD Part Number":"4-4-4 RTX-B","SAE J514 Part Number":"SAE J514 4-4-4 070424B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male Pipe x Male JIC |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J476 Male NPTF x Male JIC Tube Run Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | Tee |
| Product Type | Fittings |
