Attributes
| Part Number | 7030-24-24-SS |
|---|---|
| Is Series Page | 0 |
Description

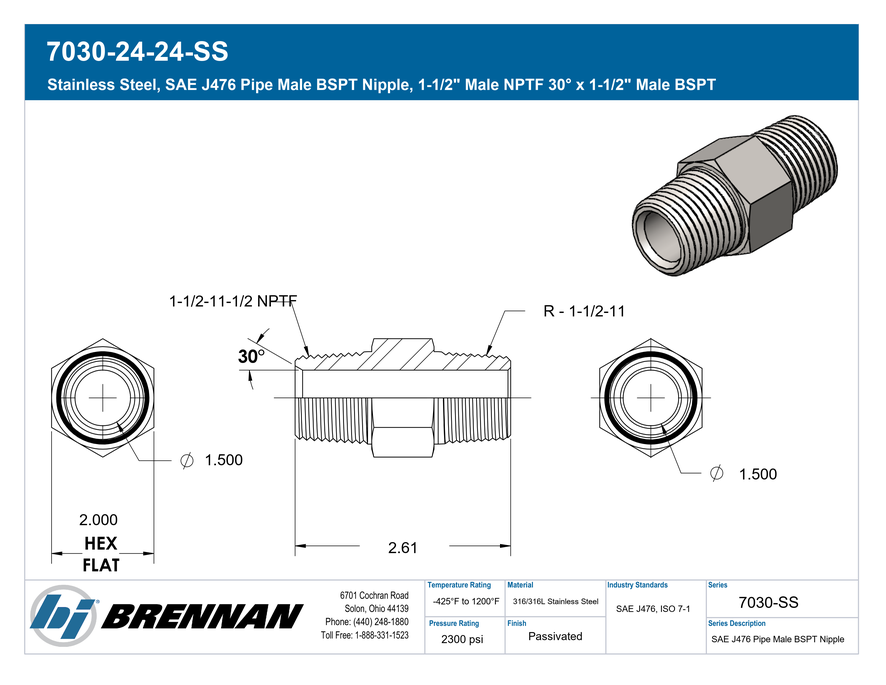

Stainless Steel, SAE J476 Pipe Male BSPT Nipple, 1-1/2" Male NPTF 30° x 1-1/2" Male BSPT
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1-1/2\"","Side 1 Thread Type":"1-1/2-11-1/2 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Male BSPT","Side 2 Pipe Size":"1-1/2\"","Side 2 Thread Type":"R - 1-1/2-11","Side 2 Standard":"ISO 7-1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"2.000","Weight":"0.79 lb"} |
| Performance Specifications | {"Working Pressure":"2300 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"9200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"1 1/2 FHF3SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Male BSPT |
| Technical Series Configuration | SAE J476 Male NPTF Pipe x ISO 7-1 Male BSPT Pipe Nipple |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Male BSPT |
| Shape | Straight |
| Product Type | Fittings |
