Attributes
| Part Number | FS6801-10-10-NWO-SS |
|---|---|
| Is Series Page | 0 |
Description

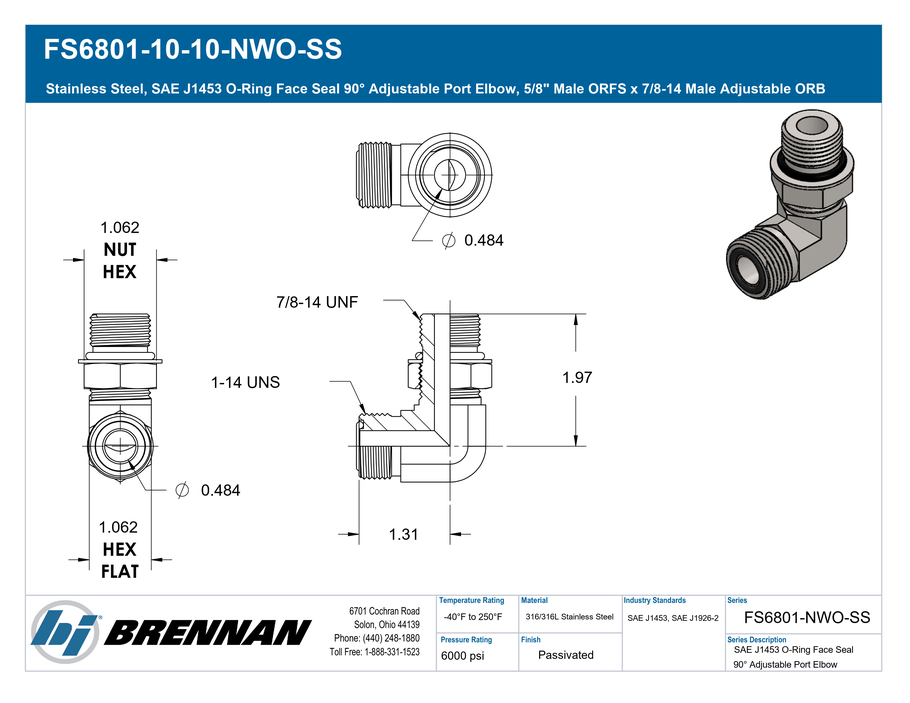

Stainless Steel, SAE J1453 O-Ring Face Seal 90° Adjustable Port Elbow, 5/8" Male ORFS x 7/8-14 Male Adjustable ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"1-14 UNS","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-10","Side 2 Connection Type":"Male Adjustable ORB","Side 2 Thread Type":"7/8-14 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-10"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Adjustable Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.59 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-FF1868T1010","Parker TFD Part Number":"10 C5OLO-SS","SAE J1453 Part Number":"SAE J1453 10-10 520220SN"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORFS x Male Adjustable ORB |
| Technical Series Configuration | SAE J1453 Male ORFS Tube x SAE J1926-2 Male Adjustable O-Ring Boss 90° Elbow |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | Male Adjustable ORB |
| Shape | 90° Elbow |
| Product Type | Fittings |
