Attributes
| Part Number | FS6602-06-06-06-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J1453 O-Ring Face Seal Swivel Run Tee, 3/8" Male ORFS x 3/8" Female ORFS Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"11/16-16 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-06","Side 2 Connection Type":"Female ORFS Swivel","Side 2 Tube OD":"3/8\"","Side 2 Thread Type":"11/16-16 UNF","Side 2 Standard":"SAE J1453 - Class 2B Thread","Side 2 Role":"Line Connection","Side 3 Connection Type":"Male ORFS","Side 3 Tube OD":"3/8\"","Side 3 Thread Type":"11/16-16 UNF","Side 3 Standard":"SAE J1453 - Class 2A Thread","Side 3 Role":"Line/Tube Connection","Side 3 Replacement Seal":"FS4000-06"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Swivel Run Tee","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.29 lb"} |
| Performance Specifications | {"Working Pressure":"9200 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"36800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-FF2114T0606","Parker TFD Part Number":"6 R6LO-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORFS x Female ORFS Swivel x Male ORFS |
| Technical Series Configuration | SAE J1453 Male ORFS Tube x Female ORFS Swivel Tube x Male ORFS Tube Run Tee |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | Female ORFS Swivel |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents

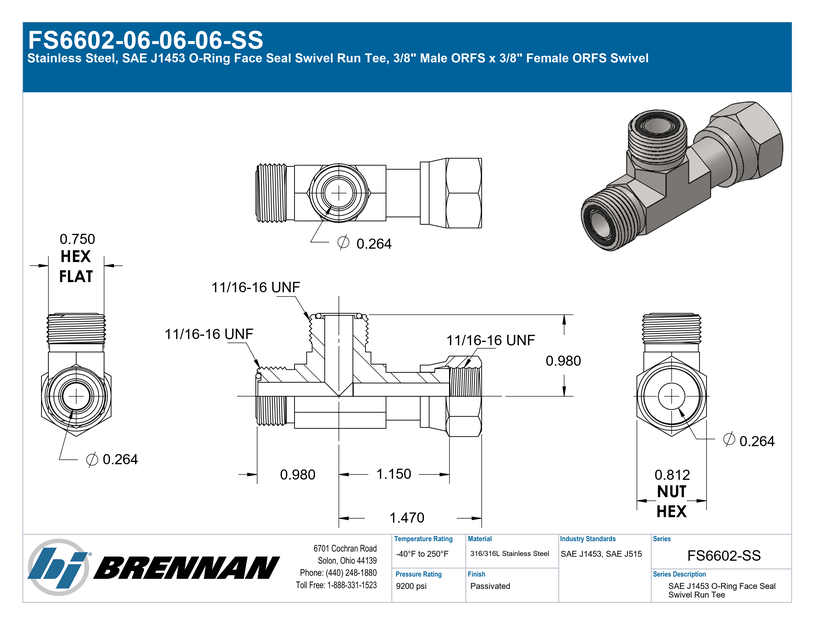

Specification Sheet
Open PDF
