Attributes
| Part Number | 7002-16-08 |
|---|---|
| Is Series Page | 0 |
Description

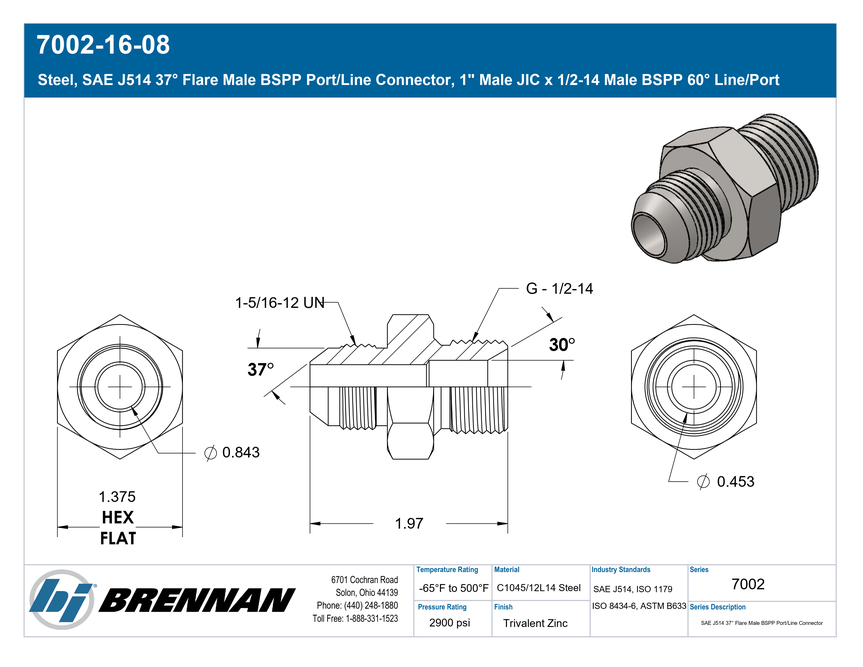

Steel, SAE J514 37° Flare Male BSPP Port/Line Connector, 1" Male JIC x 1/2-14 Male BSPP 60° Line/Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 1/2-14","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"1.375","Weight":"0.38 lb"} |
| Performance Specifications | {"Working Pressure":"2900 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"11600 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2063-8-16S","Parker TFD Part Number":"16-8 XHK4S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male BSPP (Port/Line) |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 1179 / ISO 8434-6 Male BSPP Port/Line Connector |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male BSPP 60° Line/Port |
| Shape | Straight |
| Product Type | Fittings |
