Attributes
| Part Number | 2111-06-06-SS |
|---|---|
| Is Series Page | 0 |
Description

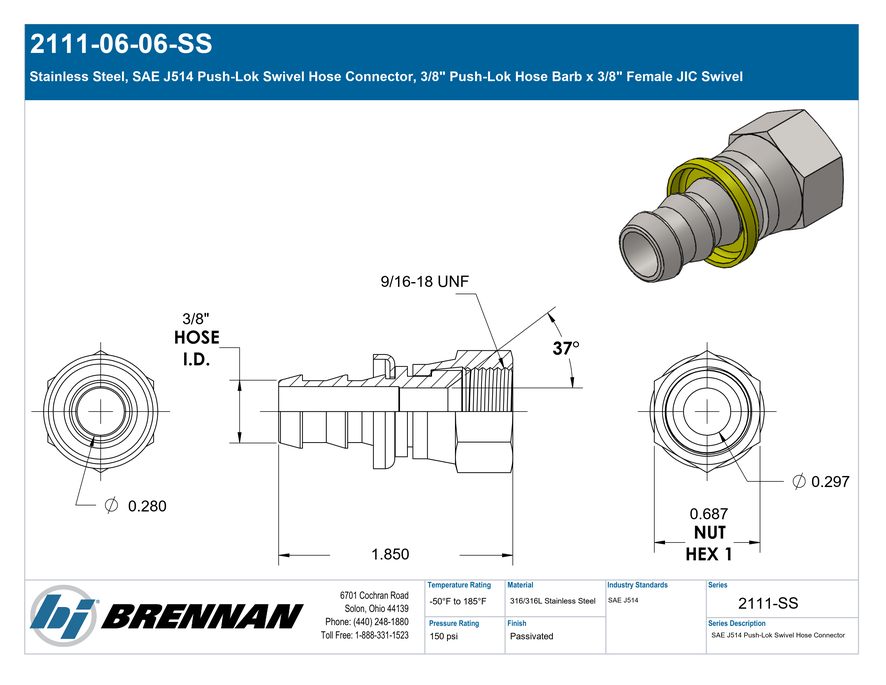

Stainless Steel, SAE J514 Push-On Swivel Hose Connector, 3/8" Push-On Hose Barb x 3/8" Female JIC Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Push-On Hose Barb","Side 1 Hose ID":"3/8\"","Side 1 Standard":"Not Defined","Side 1 Role":"Hose Connection","Side 2 Connection Type":"Female JIC Swivel","Side 2 Tube OD":"3/8\"","Side 2 Thread Type":"9/16-18 UNF","Side 2 Standard":"SAE J514 - Class 2B Thread","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Swivel Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"LDPE"} |
| Dimensions | {"Weight":"0.07 lb"} |
| Performance Specifications | {"Working Pressure":"150 psi","Temperature Range":"-50°F to 185°F","Temperature Notes":"Temperature limited by LDPE Washer"} |
| Cross References | {"Parker Hose Part Number":"30682-6-6C","Parker TFD Part Number":"30682-6-6C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Push-On Hose Barb x Female JIC Swivel |
| Technical Series Configuration | Push-On Hose Barb x SAE J514 Female JIC Swivel Connector |
| Side 1 Connection Type | Push-On Hose Barb |
| Side 2 Connection Type | Female JIC Swivel |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
