Attributes
| Part Number | 7005-10-L15-22-SS |
|---|---|
| Is Series Page | 0 |
Description

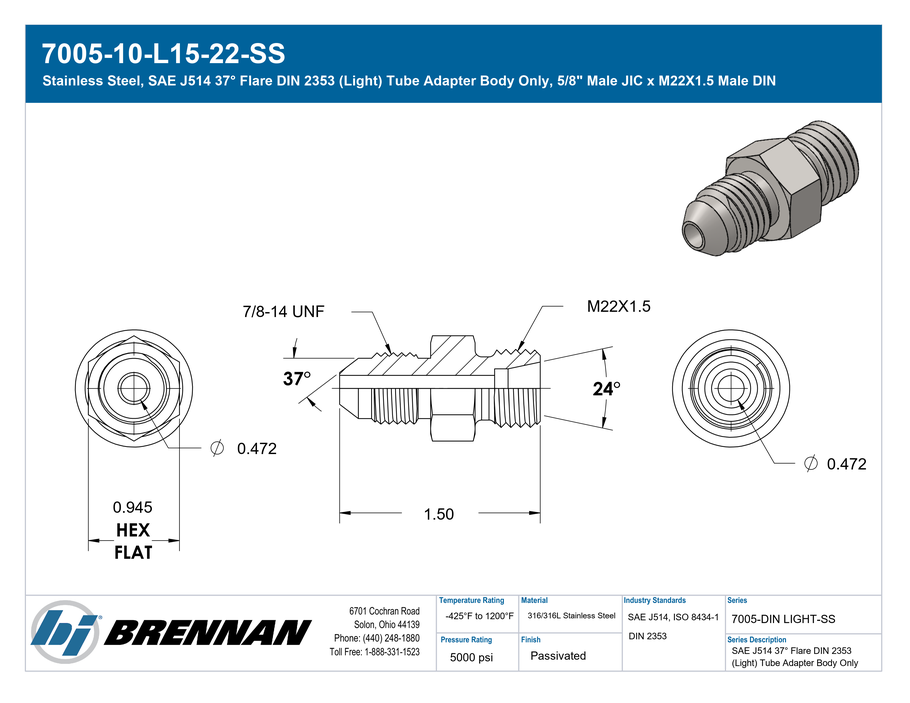

Stainless Steel, SAE J514 37° Flare DIN 2353 (Light) Tube Adapter Body Only, 5/8" Male JIC x M22X1.5 Male DIN
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male DIN","Side 2 Thread Type":"M22X1.5","Side 2 Standard":"ISO 8434-1","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"0.945","Weight":"0.16 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male Metric Light Series DIN Compression |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 8434-1 Light Series Male Metric Line Adapter |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male DIN |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
