Attributes
| Part Number | 4404-04-04 |
|---|---|
| Is Series Page | 0 |
Description

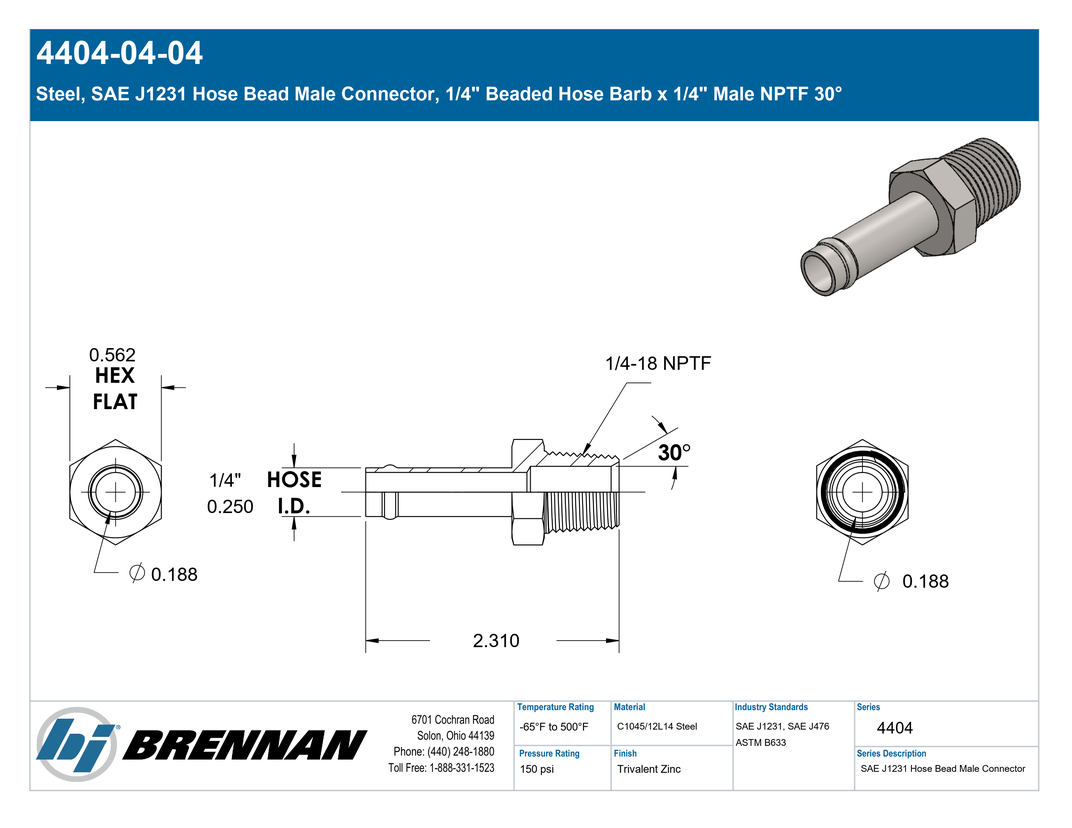

Steel, SAE J1231 Hose Bead Male Connector, 1/4" Beaded Hose Barb x 1/4" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Beaded Hose Barb","Side 1 Hose ID":"1/4\"","Side 1 Standard":"SAE J1231-2","Side 1 Role":"Hose Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.06 lb"} |
| Performance Specifications | {"Working Pressure":"150 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117"} |
| Cross References | {"Aeroquip Part Number":"FF1829-0404S","Parker Hose Part Number":"01TB-4-4","Parker TFD Part Number":"01TB-4-4","SAE J1231 Part Number":"SAE J1231 4-4 430160C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Hose Bead x Male Pipe |
| Technical Series Configuration | SAE J1231 Hose Bead x SAE J476 Male NPTF Connector |
| Side 1 Connection Type | Beaded Hose Barb |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
