Attributes
| Part Number | 6402-04-05-O-SS |
|---|---|
| Is Series Page | 0 |
Description

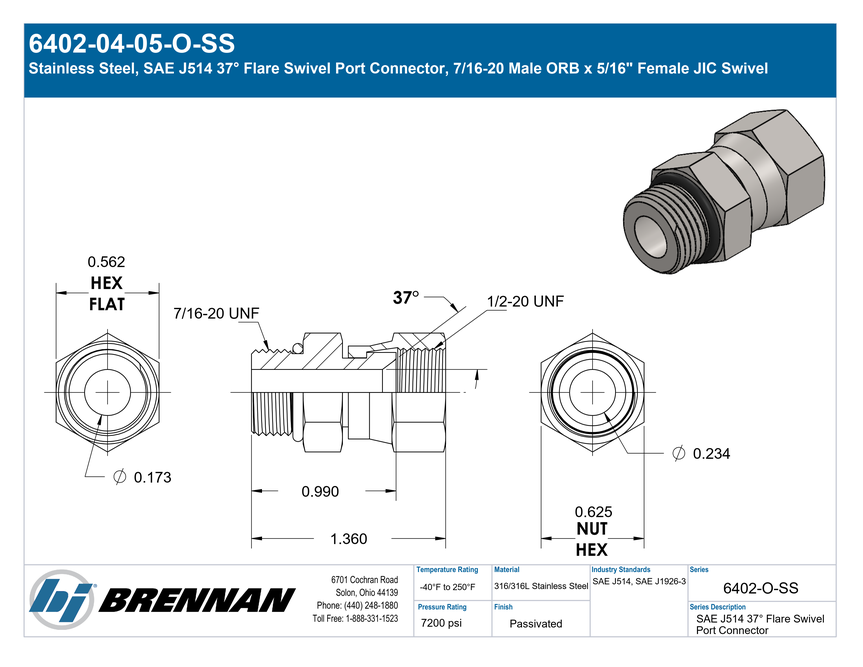

Stainless Steel, SAE J514 37° Flare Swivel Port Connector, 7/16-20 Male ORB x 5/16" Female JIC Swivel
Specifications
| Series Configuration | Male ORB x Female JIC Swivel |
|---|---|
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss x SAE J514 Female JIC Swivel Connector |
| Side 1 Connection Type | Male ORB |
| Side 2 Connection Type | Female JIC Swivel |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
