Attributes
| Part Number | D2404-S14-08 |
|---|---|
| Is Series Page | 0 |
Description

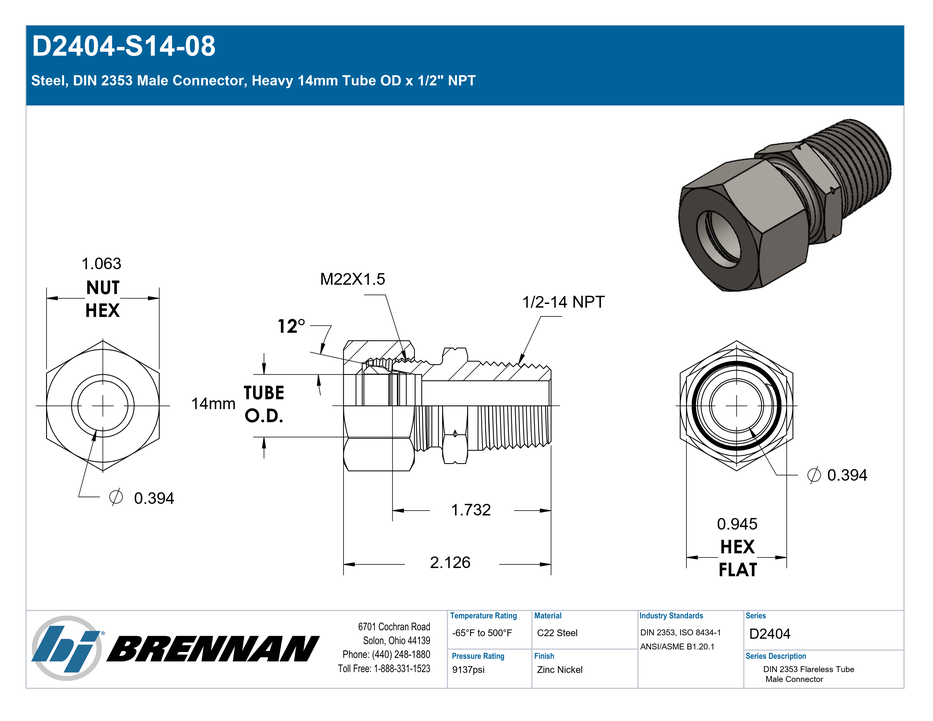

Steel, DIN 2353 Male Connector, Heavy 14mm Tube OD x 1/2" NPT
Specifications
| Series Configuration | DIN Tube x Male Pipe |
|---|---|
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ANSI/ASME B1.20.1 Male NPT Connector |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | Male NPT |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
