Attributes
| Part Number | C2404-20-16-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 Flareless Tube Male Connector, 1-1/4" Flareless Bite Type x 1" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Flareless Bite Type","Side 1 Tube OD":"1-1/4\"","Side 1 Thread Type":"1-5/8-12 UN","Side 1 Standard":"SAE J514","Side 1 Role":"Tube Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1\"","Side 2 Thread Type":"1-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"1.09 lb"} |
| Performance Specifications | {"Working Pressure":"2500 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"10000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker Hose Part Number":"0111-20-16-SS","Parker TFD Part Number":"20-16 FBU-SS","SAE J514 Part Number":"SAE J514 20-16 08A0102S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Flareless Compression x Male Pipe |
| Technical Series Configuration | SAE J514 Flareless Compression Tube x SAE J476 Male NPTF Connector |
| Side 1 Connection Type | Flareless Bite Type |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

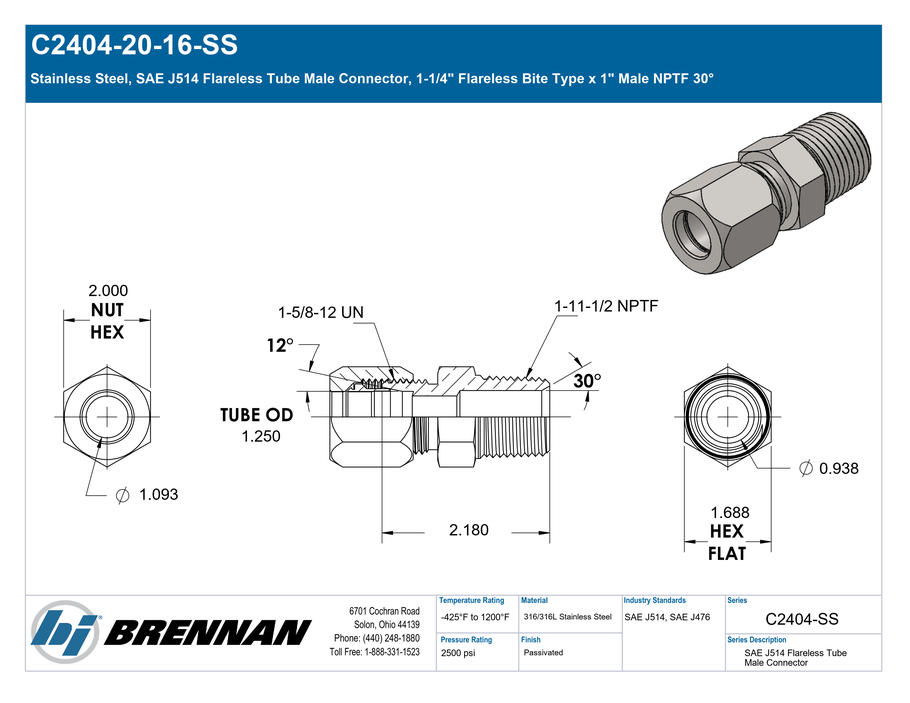

Specification Sheet
