Attributes
| Part Number | 7032-24-40 |
|---|---|
| Is Series Page | 0 |
Description

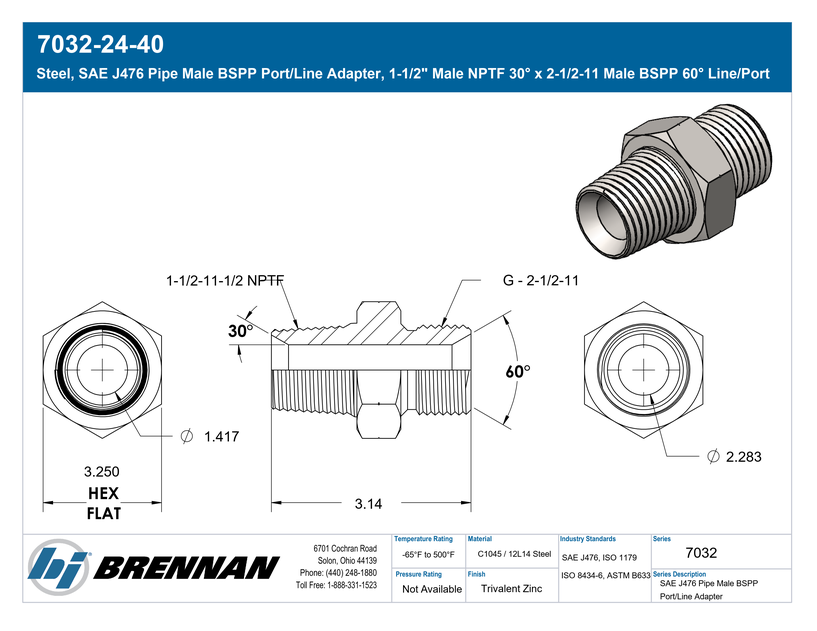

Steel, SAE J476 Pipe Male BSPP Port/Line Adapter, 1-1/2" Male NPTF 30° x 2-1/2-11 Male BSPP 60° Line/Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1-1/2\"","Side 1 Thread Type":"1-1/2-11-1/2 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 2-1/2-11","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"3.250","Weight":"2.01 lb"} |
| Performance Specifications | {"Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117"} |
| Cross References | {"Aeroquip Part Number":"15.000-24-40","Parker TFD Part Number":"40-24FMK4S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male Pipe x Male BSPP Type (B) (Port/Line) |
| Technical Series Configuration | SAE J476 Male NPTF Pipe x ISO 1179/ISO 8434-6 Male BSPP Port/Line Adapter |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Male BSPP 60° Line/Port |
| Shape | Straight |
| Product Type | Fittings |
