Attributes
| Part Number | 7002-32-32-SS |
|---|---|
| Is Series Page | 0 |
Description

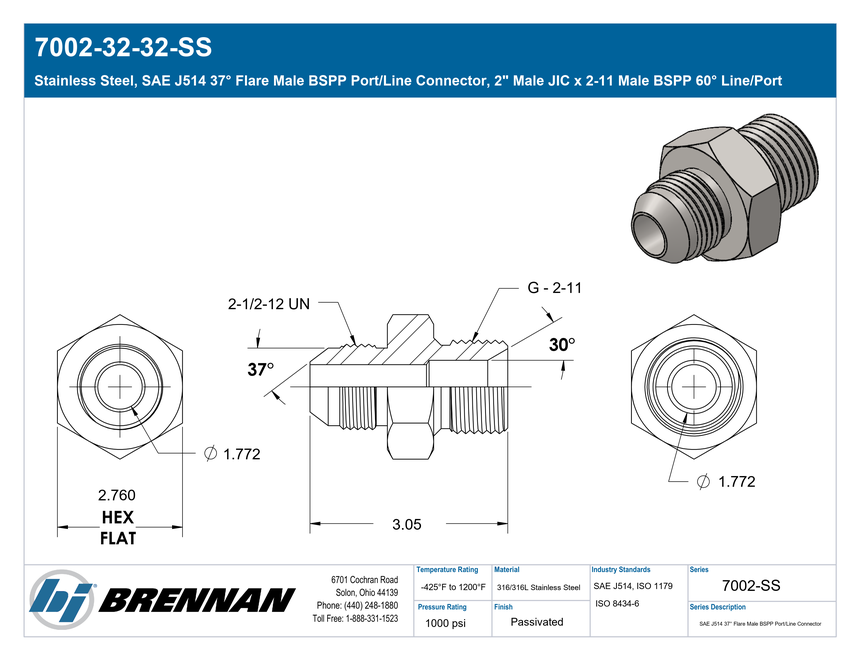

Stainless Steel, SAE J514 37° Flare Male BSPP Port/Line Connector, 2" Male JIC x 2-11 Male BSPP 60° Line/Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"2\"","Side 1 Thread Type":"2-1/2-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 2-11","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"2.760","Weight":"1.98 lb"} |
| Performance Specifications | {"Working Pressure":"1000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"4000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2063-32-32","Parker TFD Part Number":"32-32 XHK4SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male BSPP (Port/Line) |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 1179 / ISO 8434-6 Male BSPP Port/Line Connector |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male BSPP 60° Line/Port |
| Shape | Straight |
| Product Type | Fittings |
