Attributes
| Part Number | 6404-16-16-SS |
|---|---|
| Is Series Page | 0 |
Description

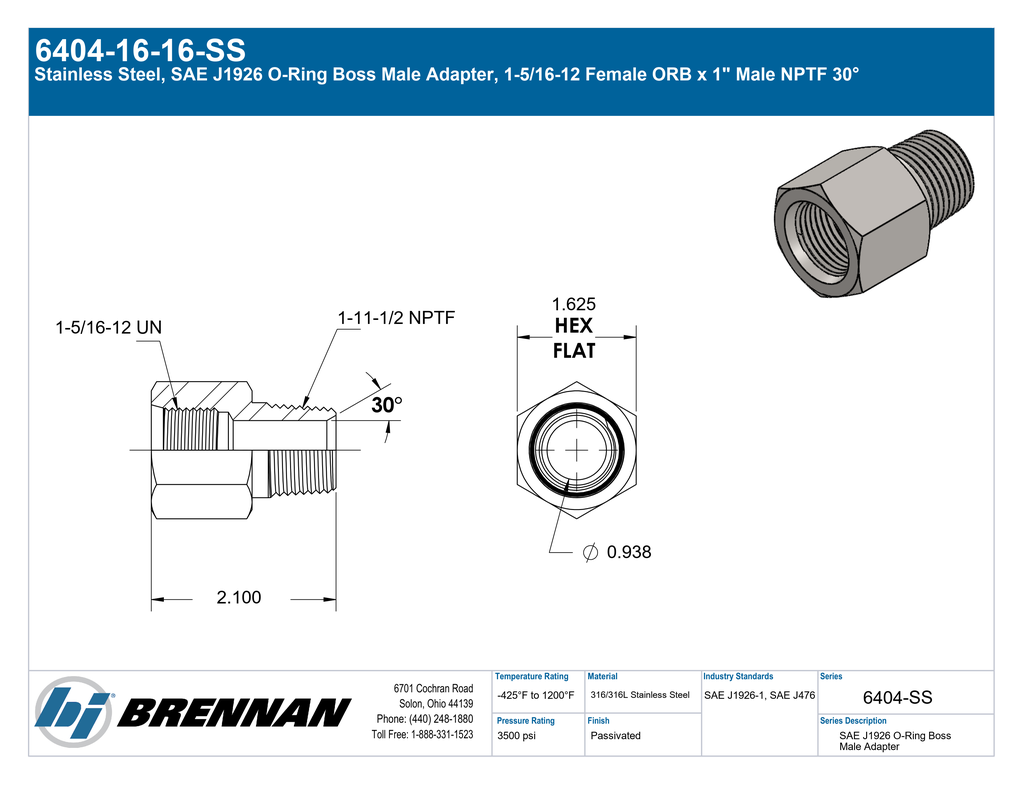

Stainless Steel, SAE J1926 O-Ring Boss Male Adapter, 1-5/16-12 Female ORB x 1" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Female ORB","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1\"","Side 2 Thread Type":"1-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Adapter","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.51 lb"} |
| Performance Specifications | {"Working Pressure":"3500 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"14000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2246-16-16","Parker TFD Part Number":"1-16 FHG5-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female ORB x Male Pipe |
| Technical Series Configuration | SAE J1926-1 Female O-Ring Boss x SAE J476 Male NPTF Adapter |
| Side 1 Connection Type | Female ORB |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
