Attributes
| Part Number | 6902-16-12-NWO-FG |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 NPSM Swivel 45° Adjustable Port Elbow, 1-5/16-12 Male Adjustable ORB x 3/4" Female NPSM Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-16","Side 2 Connection Type":"Female NPSM Swivel","Side 2 Pipe Size":"3/4\"","Side 2 Thread Type":"3/4-14 NPSM","Side 2 Standard":"SAE J514","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"45° Elbow","Shape Type":"Adjustable Swivel Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.80 lb"} |
| Performance Specifications | {"Working Pressure":"2500 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"10000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2067-12-16S","Parker Hose Part Number":"3507-16-12","Parker TFD Part Number":"3507-16-12","SAE J514 Part Number":"SAE J514 12-16 140357CN"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Adjustable ORB x Female Pipe Swivel |
| Technical Series Configuration | SAE J1926-3 Male Adjustable O-Ring Boss x SAE J476 Female NPSM Swivel 45° Elbow |
| Side 1 Connection Type | Male Adjustable ORB |
| Side 2 Connection Type | Female NPSM Swivel |
| Shape | 45° Elbow |
| Product Type | Fittings |
PDF Documents

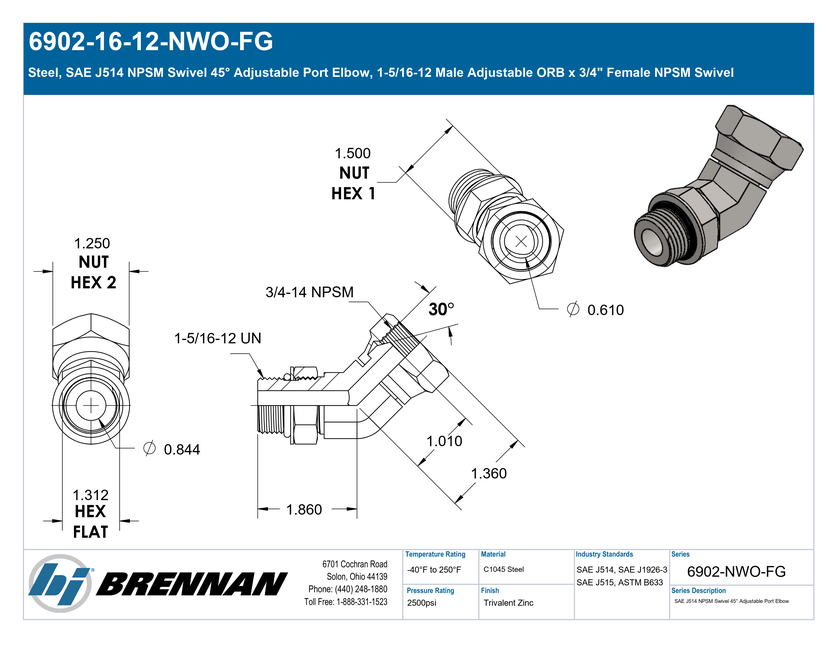

Specification Sheet
Open PDF
