Attributes
| Part Number | D2404-L22-16 |
|---|---|
| Is Series Page | 0 |
Description

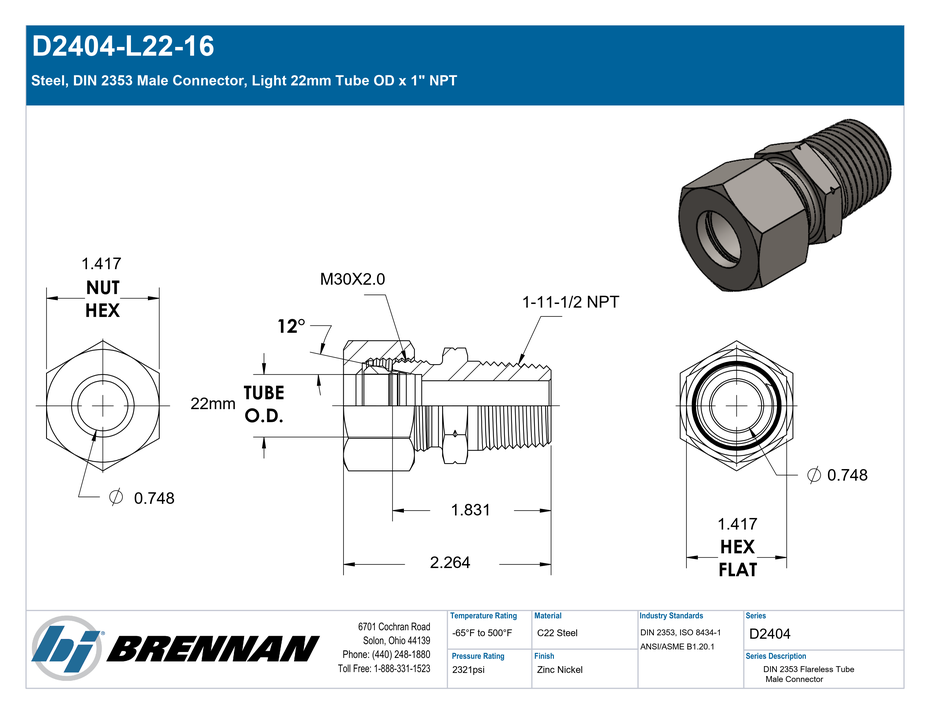

Steel, DIN 2353 Male Connector, Light 22mm Tube OD x 1" NPT
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"22mm","Side 1 Thread Type":"M30X2.0","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Light","Side 2 Connection Type":"Male NPT","Side 2 Pipe Size":"1\"","Side 2 Thread Type":"1-11-1/2 NPT","Side 2 Standard":"ANSI/ASME B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel"} |
| Dimensions | {"Hex/Wrench":"36mm","Weight":"0.65 lb"} |
| Performance Specifications | {"Working Pressure":"2321 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227","Burst Pressure":"9284 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"GE22L1NPTCF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | DIN Tube x Male Pipe |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ANSI/ASME B1.20.1 Male NPT Connector |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | Male NPT |
| Shape | Straight |
| Product Type | Fittings |
