Attributes
| Part Number | 2405-24-32-SS |
|---|---|
| Is Series Page | 0 |
Description

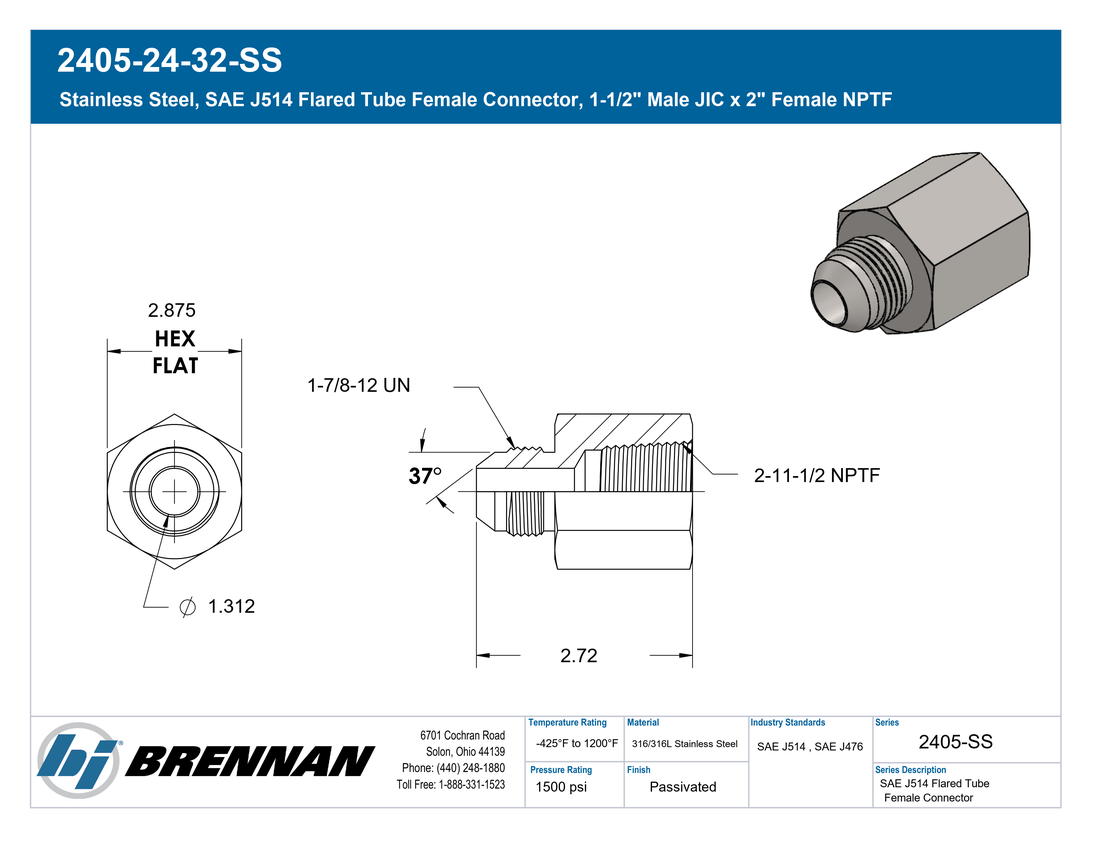

Stainless Steel, SAE J514 37° Flare Female Connector, 1-1/2" Male JIC x 2" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"2\"","Side 2 Thread Type":"2-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"2.875","Weight":"2.15 lb"} |
| Performance Specifications | {"Working Pressure":"1500 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"6000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2022-32-24","Parker TFD Part Number":"24-32 GTX-SS","SAE J514 Part Number":"SAE J514 24-32 070103S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Female Pipe |
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J476 Female NPTF Connector |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Female NPTF |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
