Attributes
| Part Number | 0304-C-24-B |
|---|---|
| Is Series Page | 0 |
Description

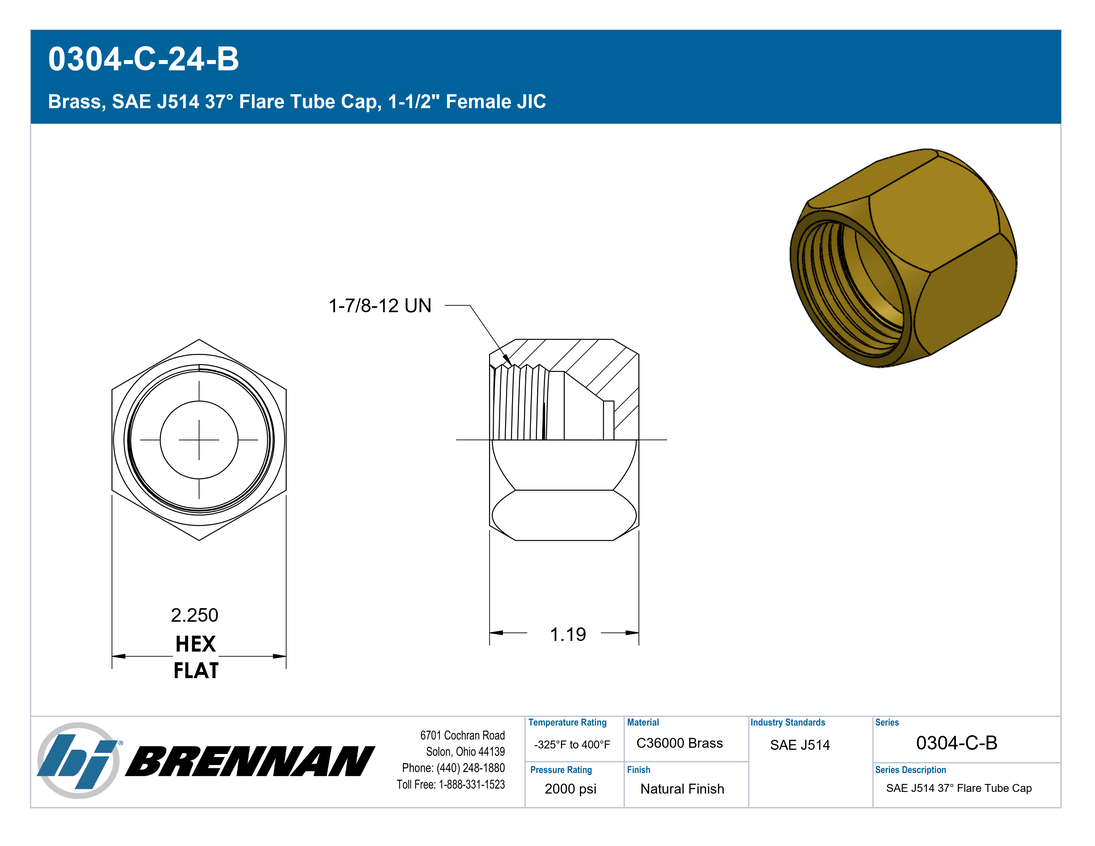

Brass, SAE J514 37° Flare Tube Cap, 1-1/2" Female JIC
Specifications
| Connection Details | {"Connection Type":"Female JIC","Tube OD":"1-1/2\"","Thread Type":"1-7/8-12 UN","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Line Connection","Connection Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Shape Type":"Cap","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.77 lb"} |
| Performance Specifications | {"Working Pressure":"2000 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"8000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"24 FNTX-B","SAE J514 Part Number":"SAE J514 24 070112B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | JIC Cap |
| Technical Series Configuration | SAE J514 Female JIC Tube Cap |
| Side 1 Connection Type | Female JIC |
| Shape | Cap/Plug |
| Product Type | Fittings |
