Attributes
| Part Number | FS6801-24-20-NWO-FG-VITON |
|---|---|
| Is Series Page | 0 |
Description

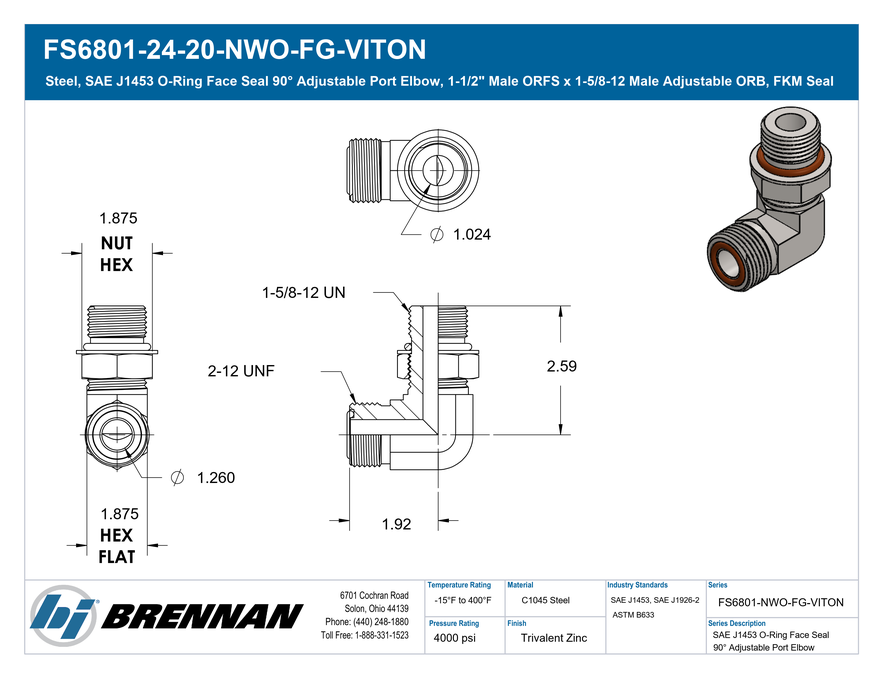

Steel, SAE J1453 O-Ring Face Seal 90° Adjustable Port Elbow, 1-1/2" Male ORFS x 1-5/8-12 Male Adjustable ORB, FKM Seal
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"2-12 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4001-24","Side 2 Connection Type":"Male Adjustable ORB","Side 2 Thread Type":"1-5/8-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4001-20"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Adjustable Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Weight":"2.28 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"SAE J1453 Part Number":"SAE J1453 24-20 520220CF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORFS x Male Adjustable ORB |
| Technical Series Configuration | SAE J1453 Male ORFS Tube x SAE J1926-2 Male Adjustable O-Ring Boss 90° Elbow |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | Male Adjustable ORB |
| Shape | 90° Elbow |
| Product Type | Fittings |
