Attributes
| Part Number | 2705-LN-12-12 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 Flared Tube Female Bulkhead, 3/4" Female NPTF x 3/4" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPTF","Side 1 Pipe Size":"3/4\"","Side 1 Thread Type":"3/4-14 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"3/4\"","Side 2 Thread Type":"1-1/16-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Bulkhead","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bulkhead"} |
| Dimensions | {"Hex/Wrench":"1.375","Weight":"0.67 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2239-12-12S","Parker TFD Part Number":"12 WGTX-WLN-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female Pipe x Male JIC Bulkhead, With Lock Nut |
| Technical Series Configuration | SAE J476 Female NPTF x SAE J514 Male JIC Tube Bulkhead |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | Male JIC |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

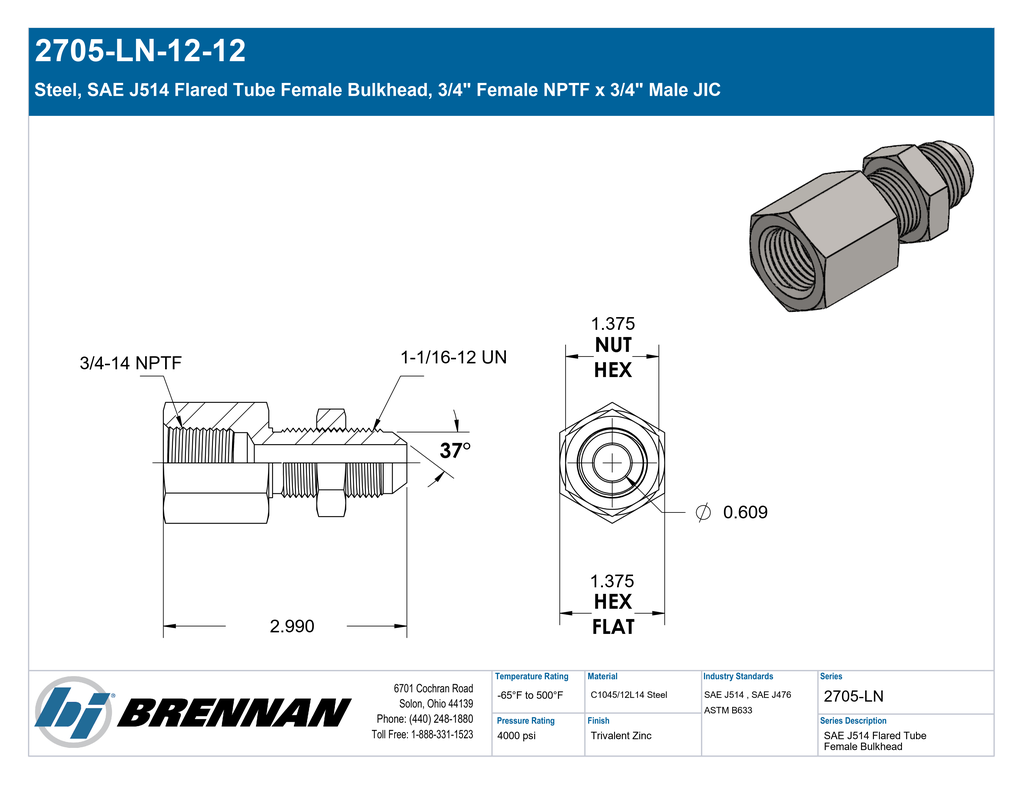

Specification Sheet
Open PDF
