Attributes
| Part Number | 7032-20-20-SS |
|---|---|
| Is Series Page | 0 |
Description

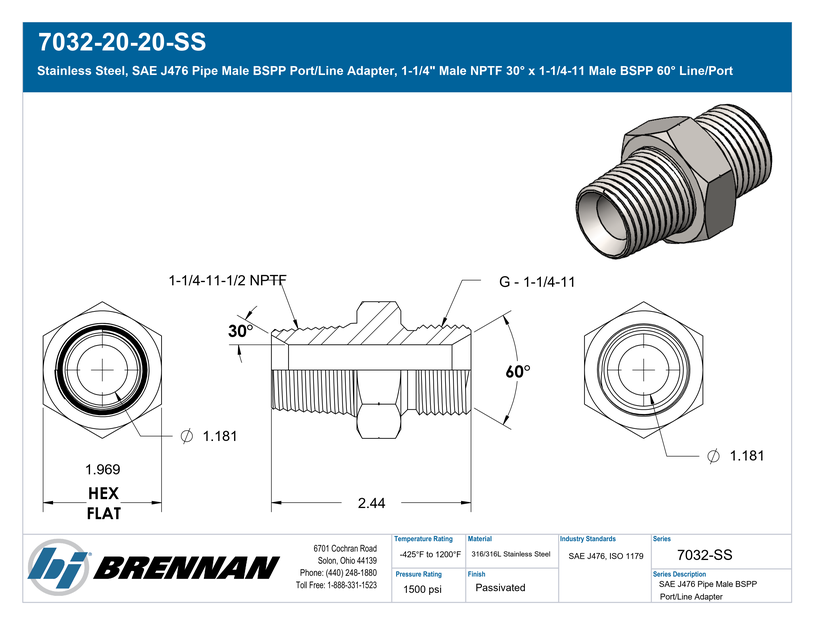

Stainless Steel, SAE J476 Pipe Male BSPP Port/Line Adapter, 1-1/4" Male NPTF 30° x 1-1/4-11 Male BSPP 60° Line/Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1-1/4\"","Side 1 Thread Type":"1-1/4-11-1/2 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 1-1/4-11","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"1.969","Weight":"0.77 lb"} |
| Performance Specifications | {"Working Pressure":"1500 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"6000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"20FMK4SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Male BSPP Type (B) (Port/Line) |
| Technical Series Configuration | SAE J476 Male NPTF Pipe x ISO 1179/ISO 8434-6 Male BSPP Port/Line Adapter |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Male BSPP 60° Line/Port |
| Shape | Straight |
| Product Type | Fittings |
