| Part Number | D2404-E04-02 |
|---|---|
| Is Series Page | 0 |
Description

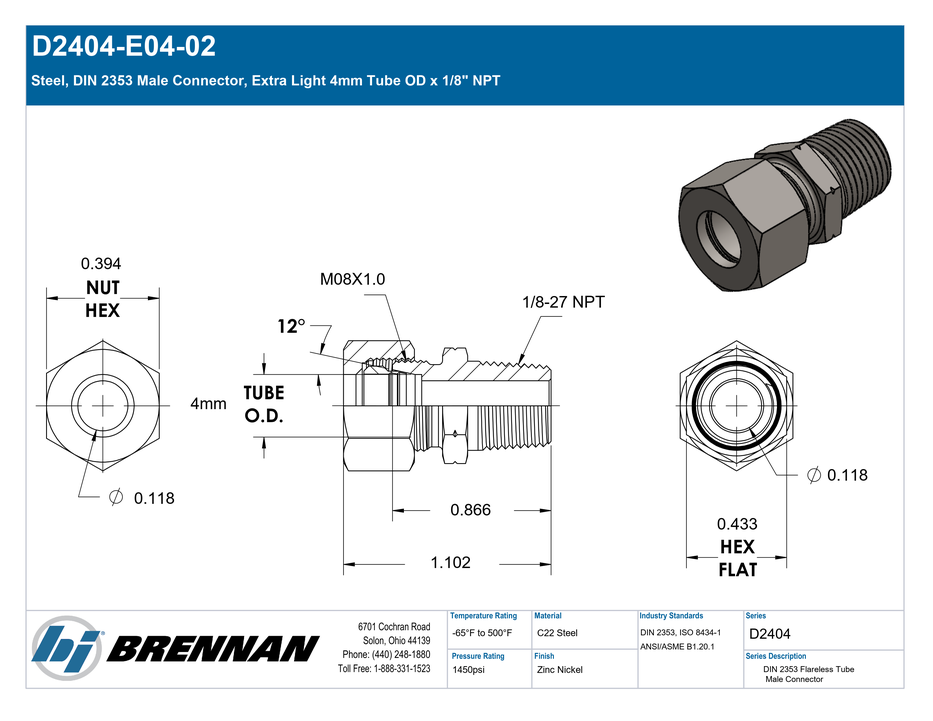

Steel, DIN 2353 Male Connector, Extra Light 4mm Tube OD x 1/8" NPT
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"4mm","Side 1 Thread Type":"M08X1.0","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Extra Light","Side 2 Connection Type":"Male NPT","Side 2 Pipe Size":"1/8\"","Side 2 Thread Type":"1/8-27 NPT","Side 2 Standard":"ANSI/ASME B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel"} |
| Dimensions | {"Hex/Wrench":"11mm","Weight":"0.03 lb"} |
| Performance Specifications | {"Working Pressure":"1450 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227","Burst Pressure":"5800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"GE04LL1/8NPTCF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | DIN Tube x Male Pipe |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ANSI/ASME B1.20.1 Male NPT Connector |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | Male NPT |
| Shape | Straight |
| Product Type | Fittings |
