Attributes
| Part Number | 6565-05-05 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare Swivel Union, 5/16" Female JIC Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Female JIC Swivel","Side 1 Tube OD":"5/16\"","Side 1 Thread Type":"1/2-20 UNF","Side 1 Standard":"SAE J514 - Class 2B Thread","Side 1 Role":"Line Connection","Side 2 Connection Type":"Female JIC Swivel","Side 2 Tube OD":"5/16\"","Side 2 Thread Type":"1/2-20 UNF","Side 2 Standard":"SAE J514 - Class 2B Thread","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Swivel Union","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.07 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"FF1730-0505S","Parker Hose Part Number":"0606-5-5","Parker TFD Part Number":"5 HX6-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female JIC Swivel x Female JIC Swivel |
| Technical Series Configuration | SAE J514 Female JIC Swivel Tube x Female JIC Swivel Tube Union |
| Side 1 Connection Type | Female JIC Swivel |
| Side 2 Connection Type | Female JIC Swivel |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

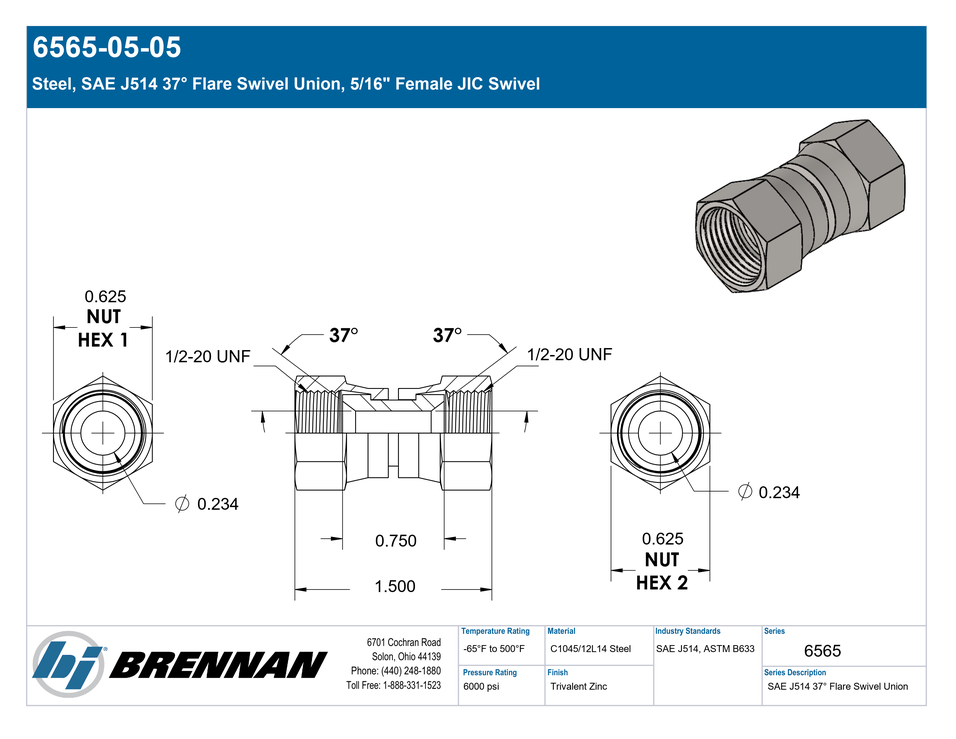

Specification Sheet
Open PDF
