Attributes
| Part Number | 0304-C-08-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 37° Flare Tube Cap, 1/2" Female JIC
Specifications
| Connection Details | {"Connection Type":"Female JIC","Tube OD":"1/2\"","Thread Type":"3/4-16 UNF","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Line Connection","Connection Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Shape Type":"Cap","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.09 lb"} |
| Performance Specifications | {"Working Pressure":"7200 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"28800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-210292-8","Parker TFD Part Number":"8 FNTX-SS","SAE J514 Part Number":"SAE J514 8 070112S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | JIC Cap |
| Technical Series Configuration | SAE J514 Female JIC Tube Cap |
| Side 1 Connection Type | Female JIC |
| Shape | Cap/Plug |
| Product Type | Fittings |
PDF Documents

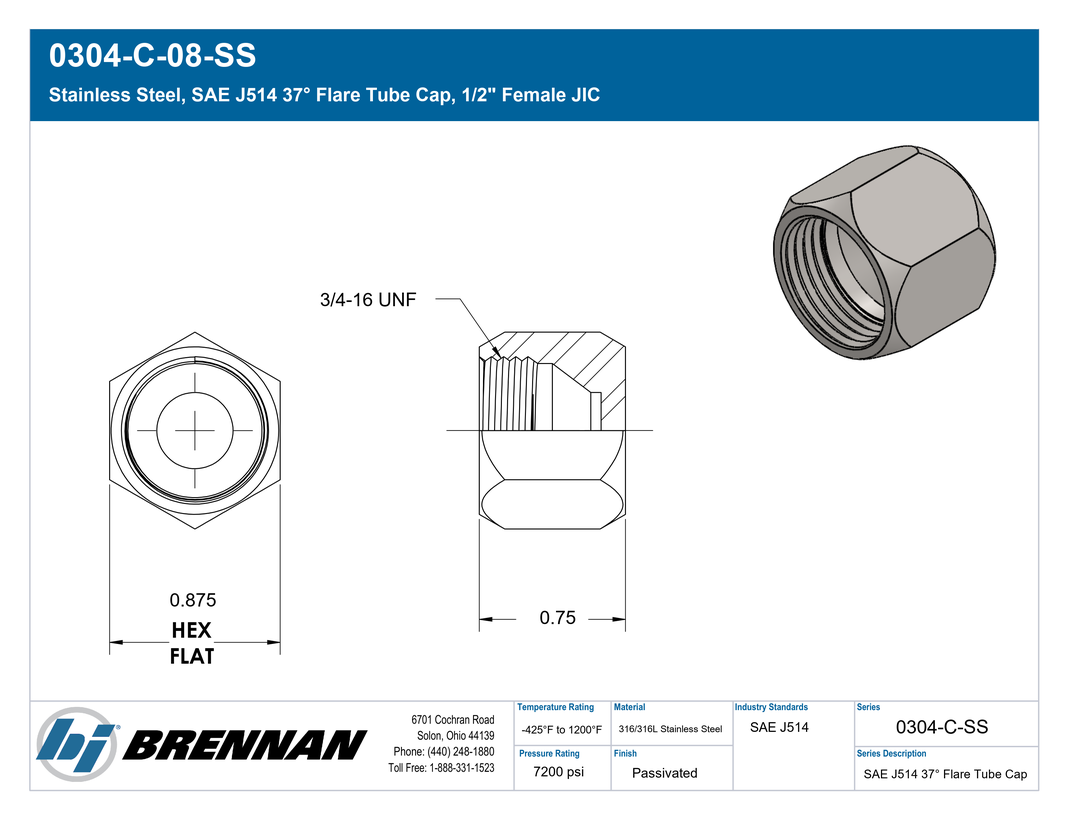

Specification Sheet
