Attributes
| Part Number | 4603-10-08-NWO-FG |
|---|---|
| Is Series Page | 0 |
Description

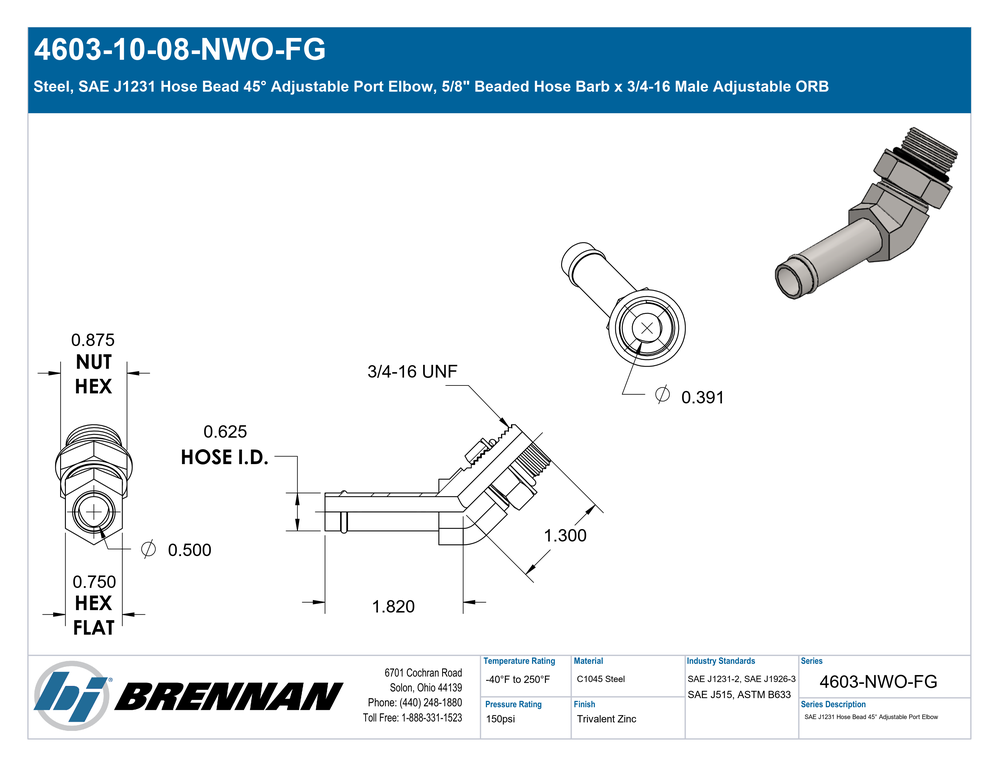

Steel, SAE J1231 Hose Bead 45° Adjustable Port Elbow, 5/8" Beaded Hose Barb x 3/4-16 Male Adjustable ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Beaded Hose Barb","Side 1 Hose ID":"5/8\"","Side 1 Standard":"SAE J1231-2","Side 1 Role":"Hose Connection","Side 2 Connection Type":"Male Adjustable ORB","Side 2 Thread Type":"3/4-16 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-08"} |
|---|---|
| Body & Materials | {"Shape":"45° Elbow","Shape Type":"Male Adjustable Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.21 lb"} |
| Performance Specifications | {"Working Pressure":"150 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117"} |
| Cross References | {"Aeroquip Part Number":"FF1168-0810S","Parker Hose Part Number":"35TB-8-10","Parker TFD Part Number":"35TB-8-10","SAE J1231 Part Number":"SAE J1231 8-10 432292CN"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Hose Bead x Male Adjustable ORB |
| Technical Series Configuration | SAE J1231 Hose Bead x SAE J1926-3 Male Adjustable O-Ring Boss 45° Elbow |
| Side 1 Connection Type | Beaded Hose Barb |
| Side 2 Connection Type | Male Adjustable ORB |
| Shape | 45° Elbow |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
