Attributes
| Part Number | 7005-10-18-BS |
|---|---|
| Is Series Page | 0 |
Description

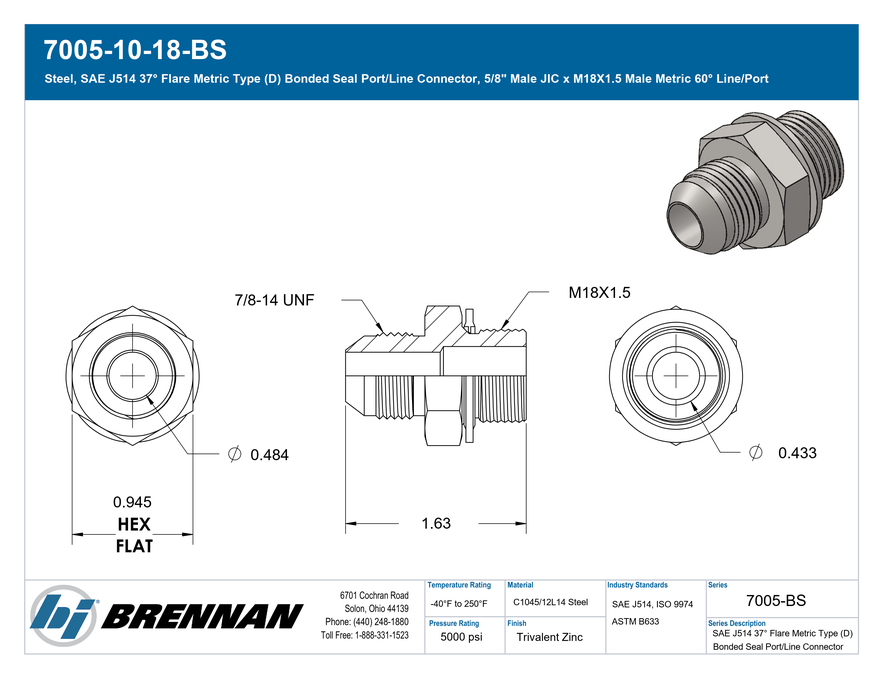

Steel, SAE J514 37° Flare Metric Type (D) Bonded Seal Port/Line Connector, 5/8" Male JIC x M18X1.5 Male Metric 60° Line/Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male Metric 60° Line/Port","Side 2 Thread Type":"M18X1.5","Side 2 Standard":"ISO 9974","Side 2 Role":"Line/Port Connection","Side 2 Replacement Gasket":"8800-18"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bonded Seal","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.945","Weight":"0.16 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male Metric (Type D) Bonded Seal |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 9974 Male Metric Port/Line Long Connector With Bonded Seal |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male Metric 60° Line/Port |
| Shape | Straight |
| Product Type | Fittings |
