Attributes
| Part Number | 5405-08-12-SS |
|---|---|
| Is Series Page | 0 |
Description

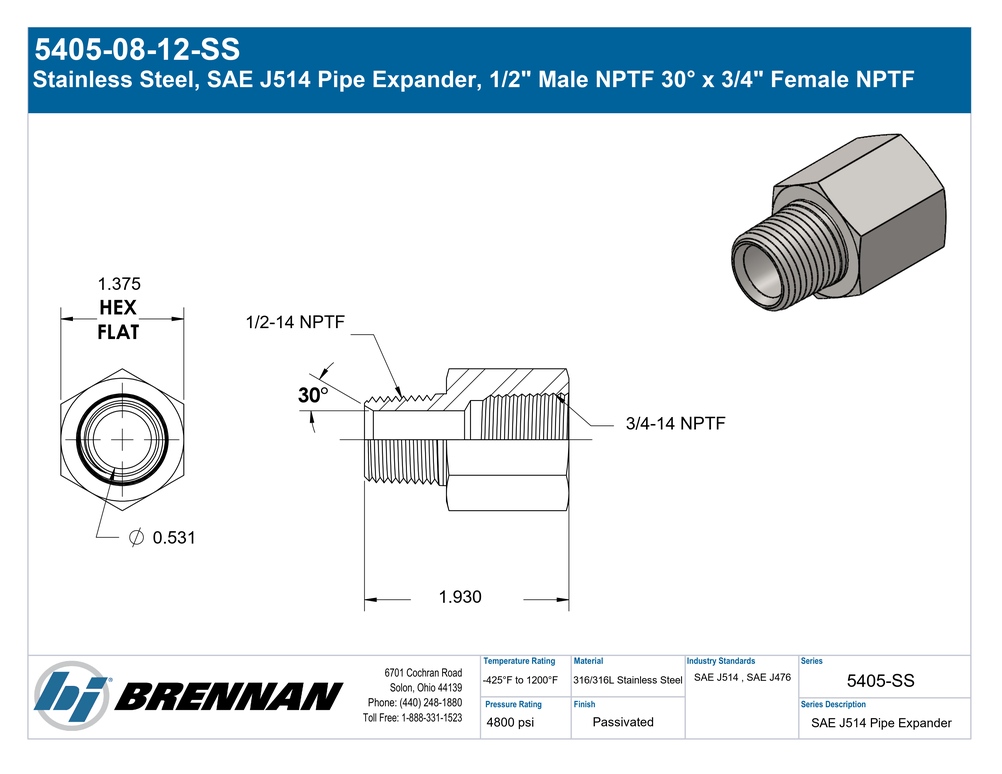

Stainless Steel, SAE J514 Pipe Expander, 1/2" Male NPTF 30° x 3/4" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1/2\"","Side 1 Thread Type":"1/2-14 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"3/4\"","Side 2 Thread Type":"3/4-14 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.40 lb"} |
| Performance Specifications | {"Working Pressure":"4800 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"19200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2040-8-12","Parker Hose Part Number":"0201-12-8-SS","Parker TFD Part Number":"3/4 X 1/2 FG-SS","SAE J514 Part Number":"SAE J514 12-8 140139S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Female Pipe |
| Technical Series Configuration | SAE J476 Male NPTF x Female NPTF Adapter |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Female NPTF |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
