Attributes
| Part Number | 7001-10-18-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 37° Flare Male Metric Type (G) Port Adapter, 5/8" Male JIC x M18X1.5 Male Metric ORR
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"5/8\"","Side 1 Thread Type":"7/8-14 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male Metric ORR","Side 2 Thread Type":"M18X1.5","Side 2 Standard":"ISO 9974","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4003-18","Side 2 Replacement Washer":"8200-18-SS"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.945","Weight":"0.17 lb"} |
| Performance Specifications | {"Working Pressure":"3600 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"14400 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-GG108-NP10-18","Parker TFD Part Number":"10M18F8OMXSS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male Metric (Type G) |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 9974 Type (G) Male MMORR Port Adapter |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male Metric ORR |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

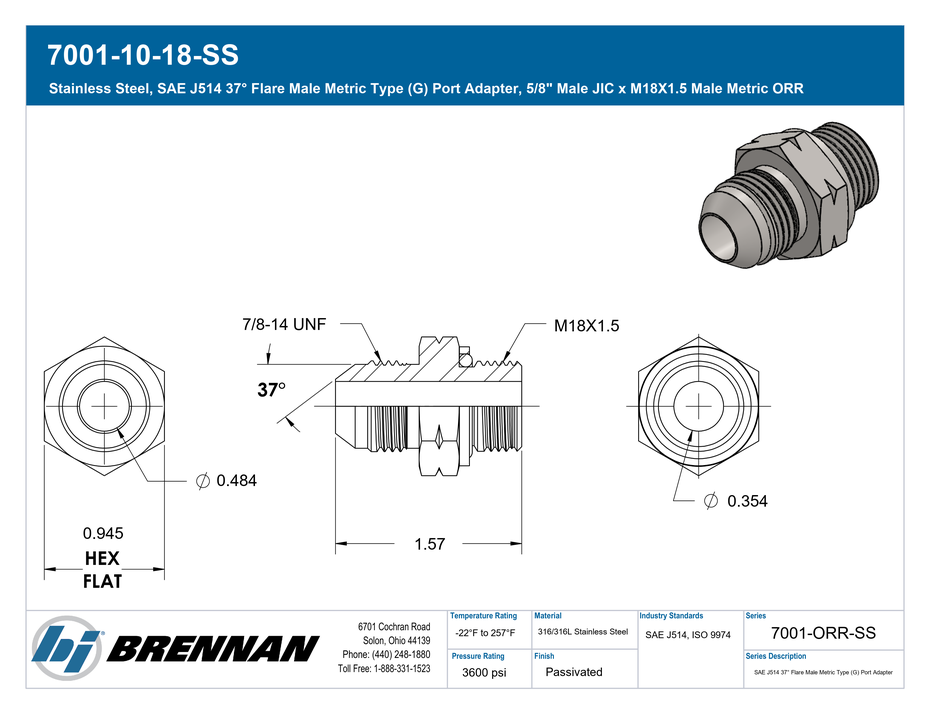

Specification Sheet
Open PDF
