Attributes
| Part Number | 6803-24-24-24-NWO-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 37° Flare Adjustable Port Branch Tee, 1-1/2" Male JIC x 1-1/2" Male JIC x 1-7/8-12 Male Adjustable ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1-1/2\"","Side 2 Thread Type":"1-7/8-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection","Side 3 Connection Type":"Male Adjustable ORB","Side 3 Thread Type":"1-7/8-12 UN","Side 3 Standard":"SAE J1926","Side 3 Role":"Port Connection","Side 3 Replacement Seal":"4000-24"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Adjustable Branch Tee","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"2.38 lb"} |
| Performance Specifications | {"Working Pressure":"2000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"8000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-203003-24-24","Parker TFD Part Number":"24 S5OX-SS","SAE J514 Part Number":"SAE J514 24-24-24 070429SN"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male JIC x Male Adjustable ORB |
| Technical Series Configuration | SAE J514 Male JIC Tube x Male JIC x SAE J1926-3 Male Adjustable O-Ring Boss Branch Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male JIC |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents

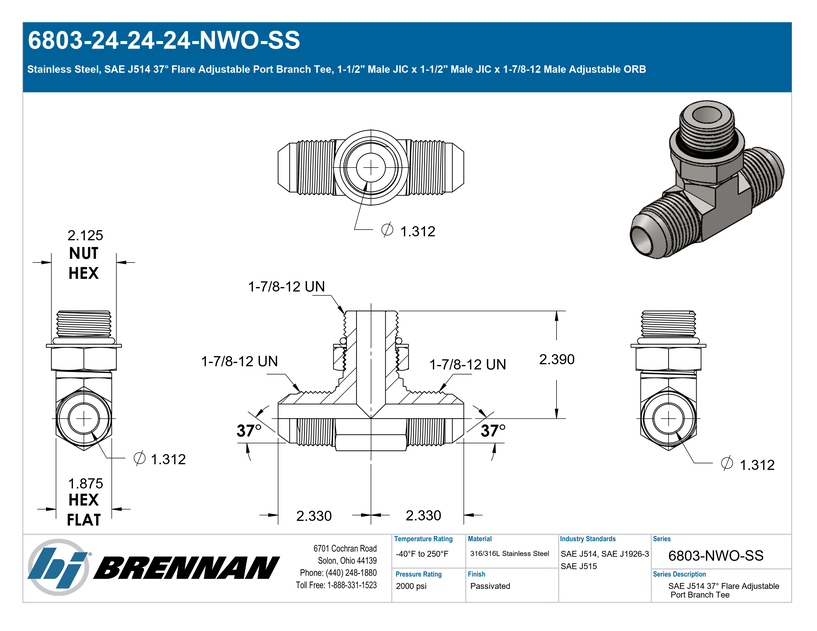

Specification Sheet
Open PDF
