Attributes
| Part Number | 7012-08-12 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare Male BSPP Type (G) Port Connector, 1/2" Male JIC x 3/4-14 Male BSPP ORR
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP ORR","Side 2 Thread Type":"G - 3/4-14","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"9901-12","Side 2 Replacement Washer":"9200-12"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"1.375","Weight":"0.31 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"GG106-NP-08-12","Parker TFD Part Number":"8-12F4OMXS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male BSPP (Type G) |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 1179 Male BSPP Type (G) ORR Port Connector |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male BSPP ORR |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

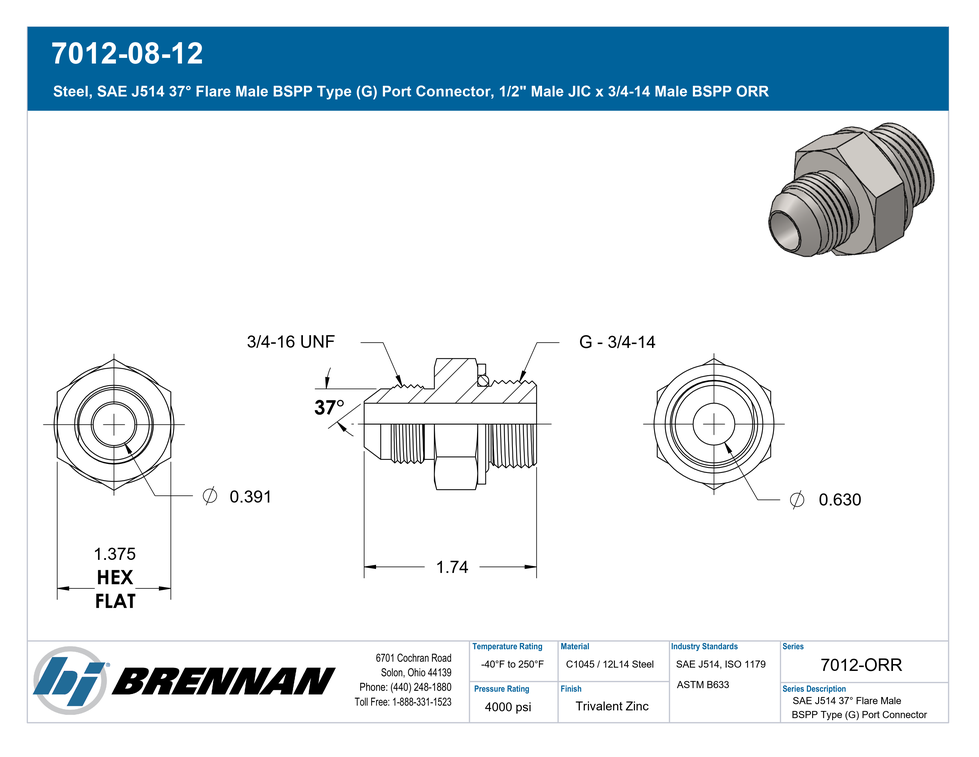

Specification Sheet
Open PDF
