Attributes
| Part Number | 5404-02-01-B |
|---|---|
| Is Series Page | 0 |
Description

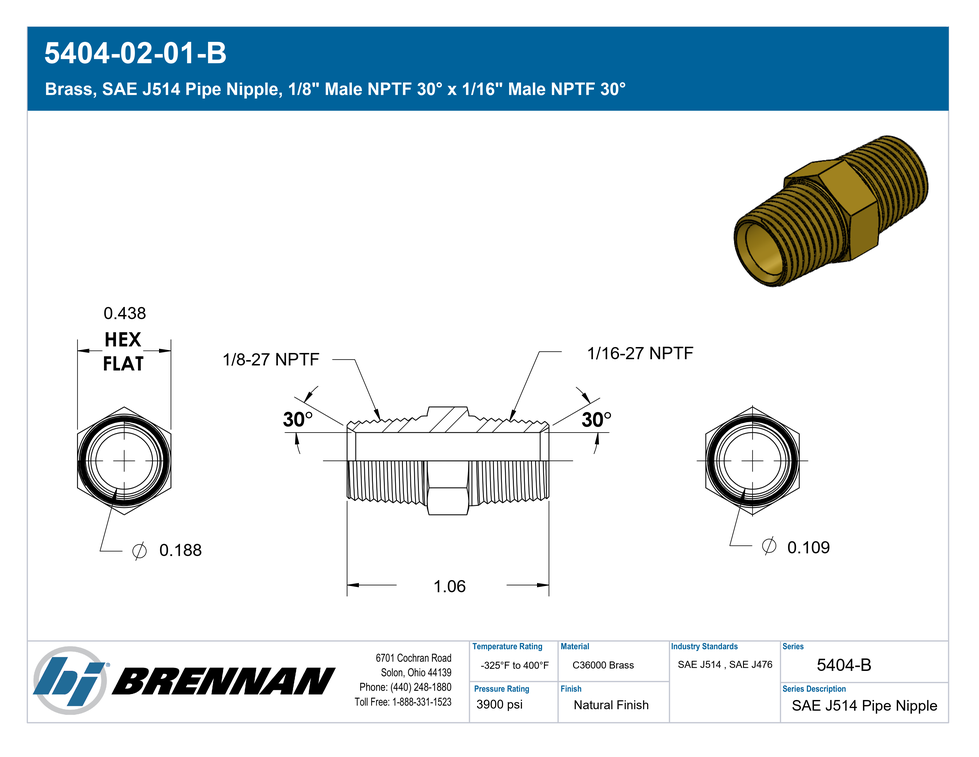

Brass, SAE J514 Pipe Nipple, 1/8" Male NPTF 30° x 1/16" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1/8\"","Side 1 Thread Type":"1/8-27 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1/16\"","Side 2 Thread Type":"1/16-27 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Pipe Nipple","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.03 lb"} |
| Performance Specifications | {"Working Pressure":"3900 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"15600 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"1/8 X 1/16 FF-B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male Pipe x Male Pipe |
| Technical Series Configuration | SAE J476 Male NPTF x Male NPTF Hex Nipple |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | Straight |
| Product Type | Fittings |
