| Part Number | 7005-04-08X1.00 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare Male Metric Port/Line Connector, 1/4" Male JIC x M08X1.0 Male Metric 60° Line/Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male Metric 60° Line/Port","Side 2 Thread Type":"M08X1.0","Side 2 Standard":"ISO 9974","Side 2 Role":"Line/Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"0.562","Weight":"0.04 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male Metric |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 9974 Male Metric Port/Line Connector |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male Metric 60° Line/Port |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

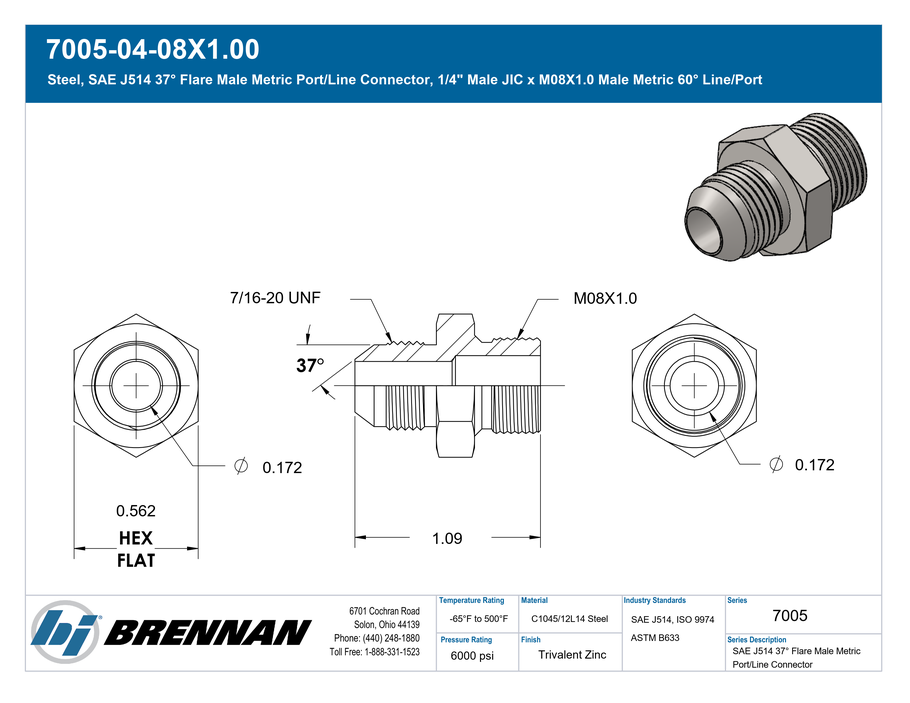

Specification Sheet
