Attributes
| Part Number | 7002-08-04-BS-SS-VITON |
|---|---|
| Is Series Page | 0 |
Description

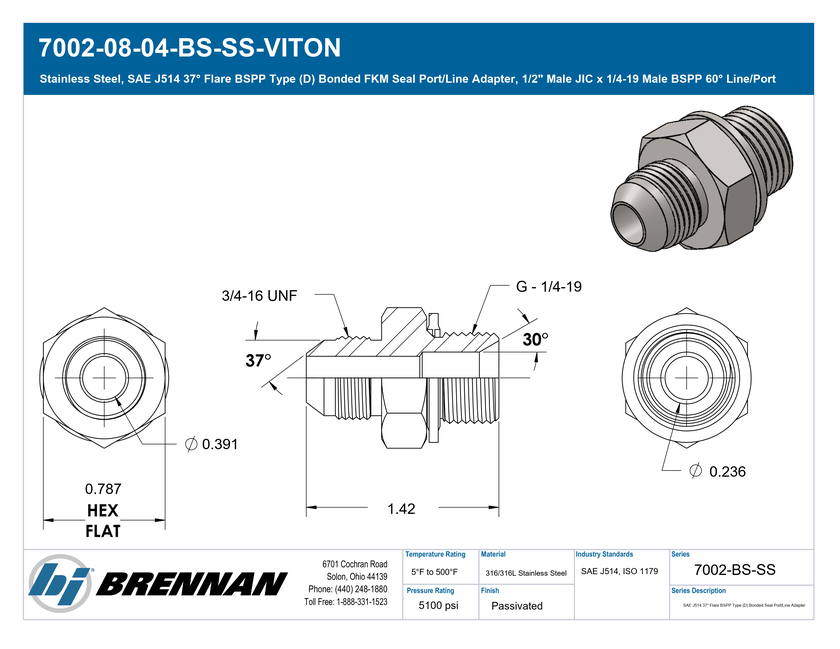

Stainless Steel, SAE J514 37° Flare BSPP Type (D) Bonded Seal Port/Line Adapter, 1/2" Male JIC x 1/4-19 Male BSPP 60° Line/Port, FKM Seal
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/2\"","Side 1 Thread Type":"3/4-16 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 1/4-19","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection","Side 2 Replacement Gasket":"9900-04-VITON"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Feature":"Bonded Seal","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Hex/Wrench":"0.787","Weight":"0.11 lb"} |
| Performance Specifications | {"Working Pressure":"5100 psi","Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Burst Pressure":"20400 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male BSPP (Type D) Bonded Seal |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 1179 Type (D) Male BSPP Port/Line Adapter With Bonded Seal |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male BSPP 60° Line/Port |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
