Attributes
| Part Number | 6400-L-24-24-O |
|---|---|
| Is Series Page | 0 |
Description

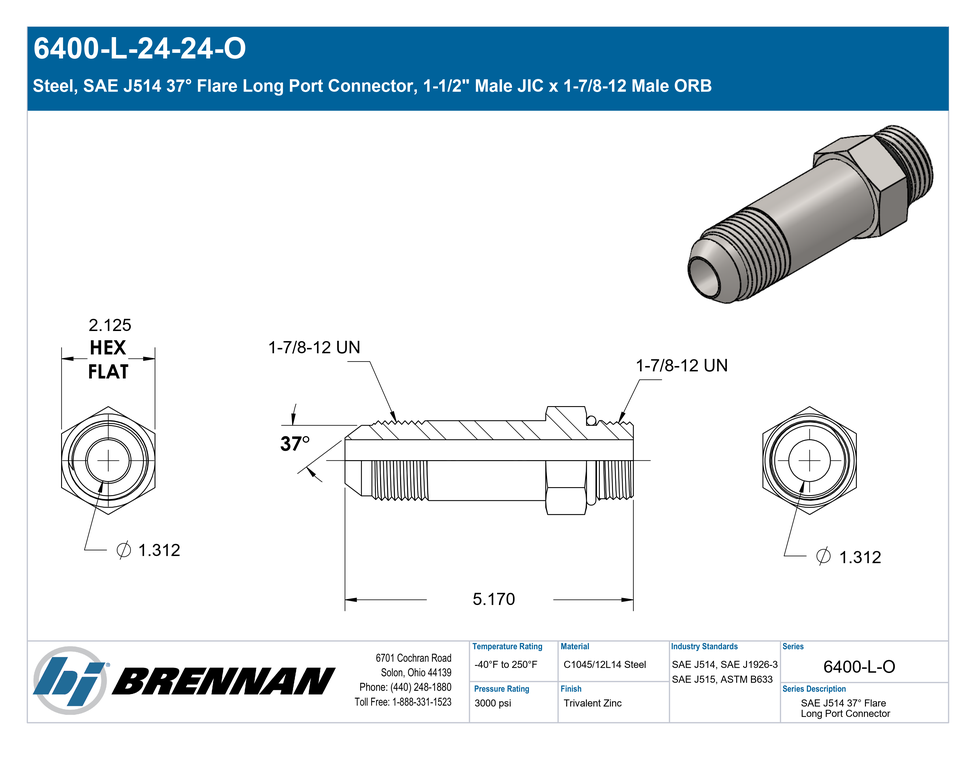

Steel, SAE J514 37° Flare Long Port Connector, 1-1/2" Male JIC x 1-7/8-12 Male ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"1-7/8-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-24"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"2.20 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"202713-24-24S","Parker Hose Part Number":"0503-24-24","Parker TFD Part Number":"24 FF5OX-S","SAE J514 Part Number":"SAE J514 24-24 071720CN"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male ORB |
| Technical Series Configuration | SAE J514 Male JIC x SAE J1926-3 Male O-Ring Boss Connector, Long |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male ORB |
| Shape | Straight |
| Product Type | Fittings |
