Attributes
| Part Number | 5406-HP-06-B |
|---|---|
| Is Series Page | 0 |
Description

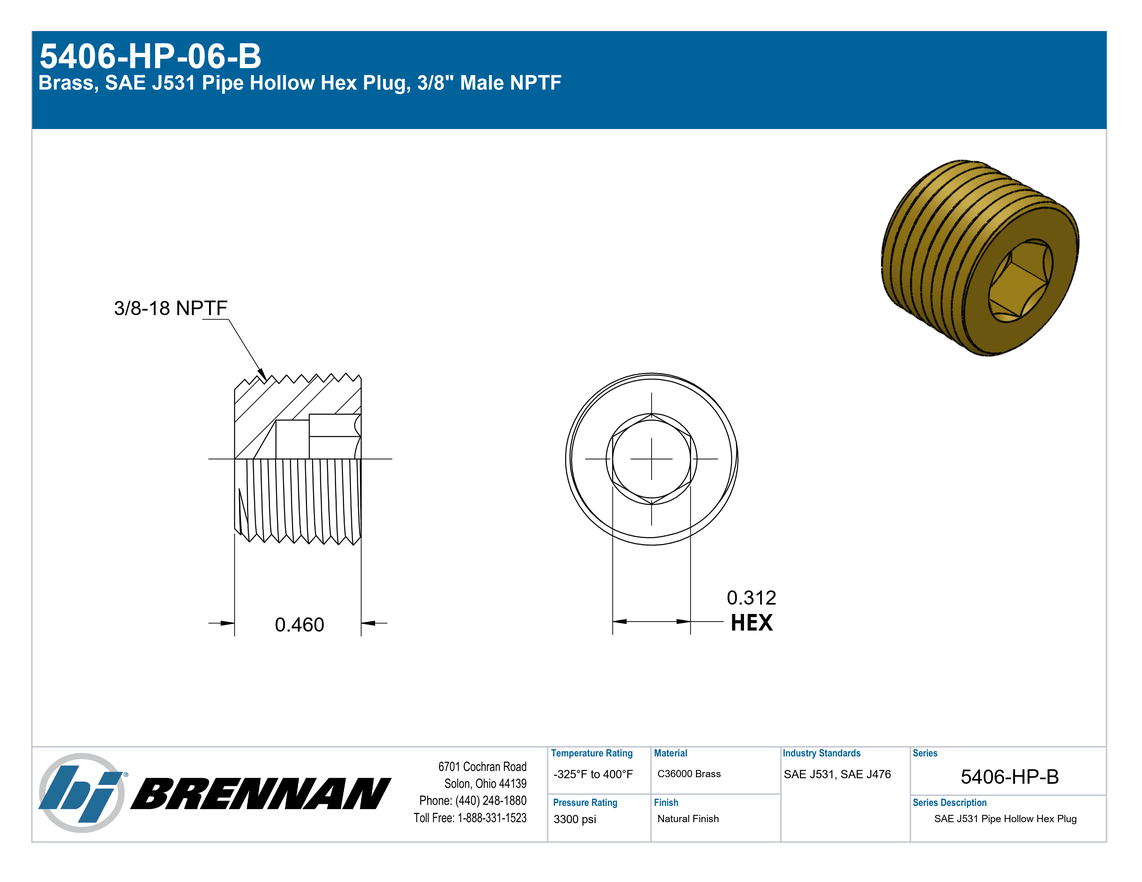

Brass, SAE J531 Pipe Hollow Hex Plug, 3/8" Male NPTF
Specifications
| Connection Details | {"Connection Type":"Male NPTF","Pipe Size":"3/8\"","Thread Type":"3/8-18 NPTF","Standard":"SAE J476","Connection Standard":"SAE J476","Role":"Pipe Connection","Connection Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.04 lb"} |
| Performance Specifications | {"Working Pressure":"3300 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"13200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2222-6B","Parker Hose Part Number":"01HP-6-B","Parker TFD Part Number":"3/8 HHP-B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Hollow Hex Pipe Plug |
| Technical Series Configuration | SAE J531 Hexagon Countersunk Headless Pipe Plug |
| Side 1 Connection Type | Male NPTF |
| Shape | Cap/Plug |
| Product Type | Fittings |
