Attributes
| Part Number | 5404-N-06X7.000-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 Pipe Long Nipple, 3/8" Male NPTF 30° x 3/8" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"3/8\"","Side 1 Thread Type":"3/8-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"3/8\"","Side 2 Thread Type":"3/8-18 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Pipe Nipple","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.06 lb"} |
| Performance Specifications | {"Working Pressure":"7200 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"28800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-2084-6-7","Parker TFD Part Number":"3/8 X 7.0 FFF-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Male Pipe |
| Technical Series Configuration | SAE J476 Male NPTF x Male NPTF Nipple, Long |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

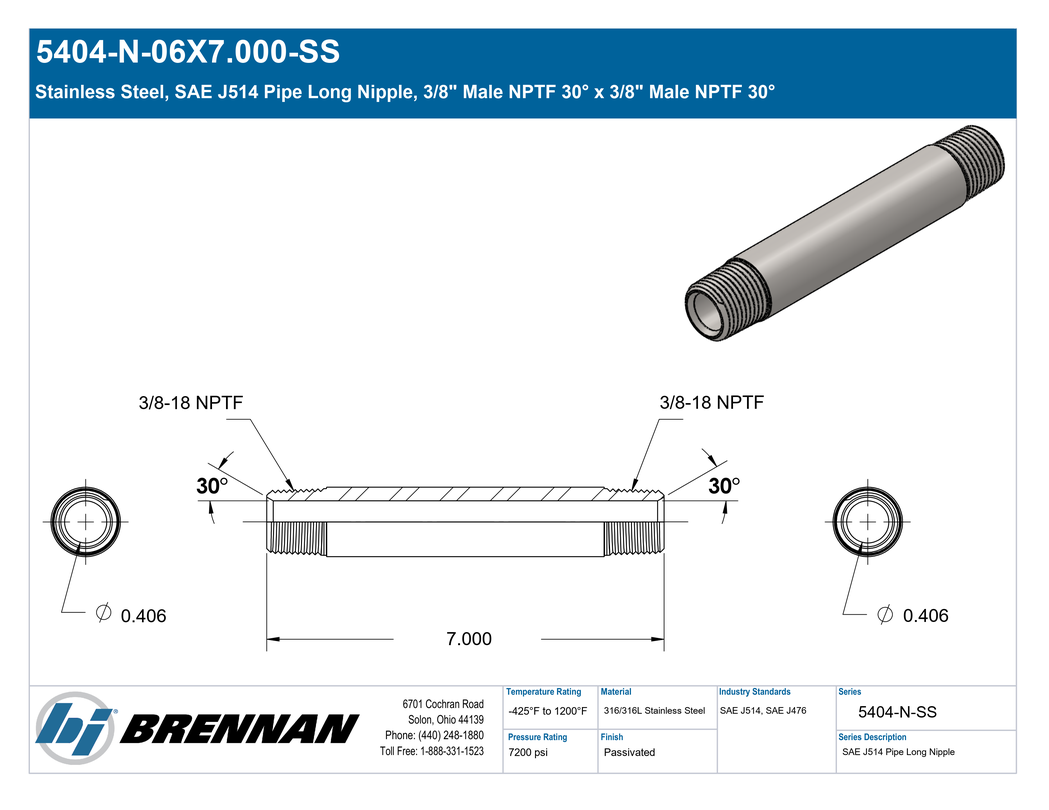

Specification Sheet
