Attributes
| Part Number | C2403-12-12 |
|---|---|
| Is Series Page | 0 |
Description

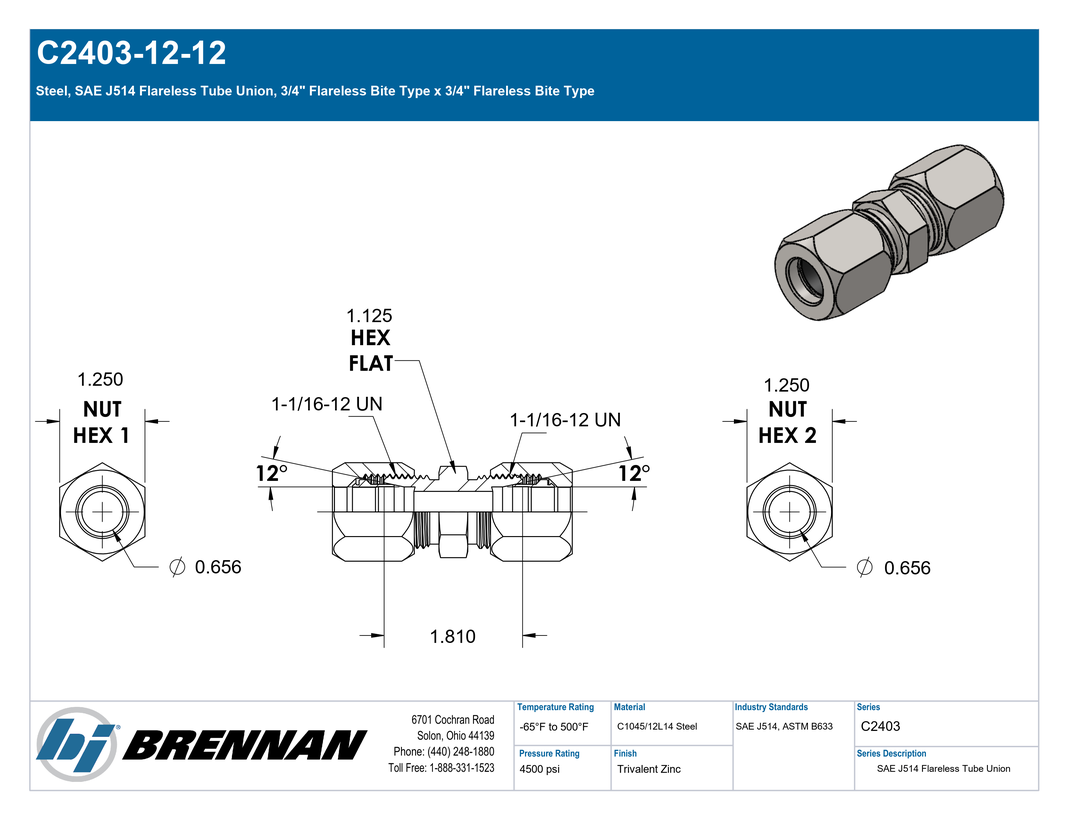

Steel, SAE J514 Flareless Tube Union, 3/4" Flareless Bite Type x 3/4" Flareless Bite Type
Specifications
| Connection Details | {"Side 1 Connection Type":"Flareless Bite Type","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-1/16-12 UN","Side 1 Standard":"SAE J514","Side 1 Role":"Tube Connection","Side 2 Connection Type":"Flareless Bite Type","Side 2 Tube OD":"3/4\"","Side 2 Thread Type":"1-1/16-12 UN","Side 2 Standard":"SAE J514","Side 2 Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Union","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.59 lb"} |
| Performance Specifications | {"Working Pressure":"4500 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"18000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"7305X12","Parker TFD Part Number":"12 HBU-S","SAE J514 Part Number":"SAE J514 12-12 08A0101C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Flareless Compression x Flareless Compression |
| Technical Series Configuration | SAE J514 Flareless Compression Tube x Flareless Compression Tube Union |
| Side 1 Connection Type | Flareless Bite Type |
| Side 2 Connection Type | Flareless Bite Type |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
