Attributes
| Part Number | 5406-C-04-SS |
|---|---|
| Is Series Page | 0 |
Description

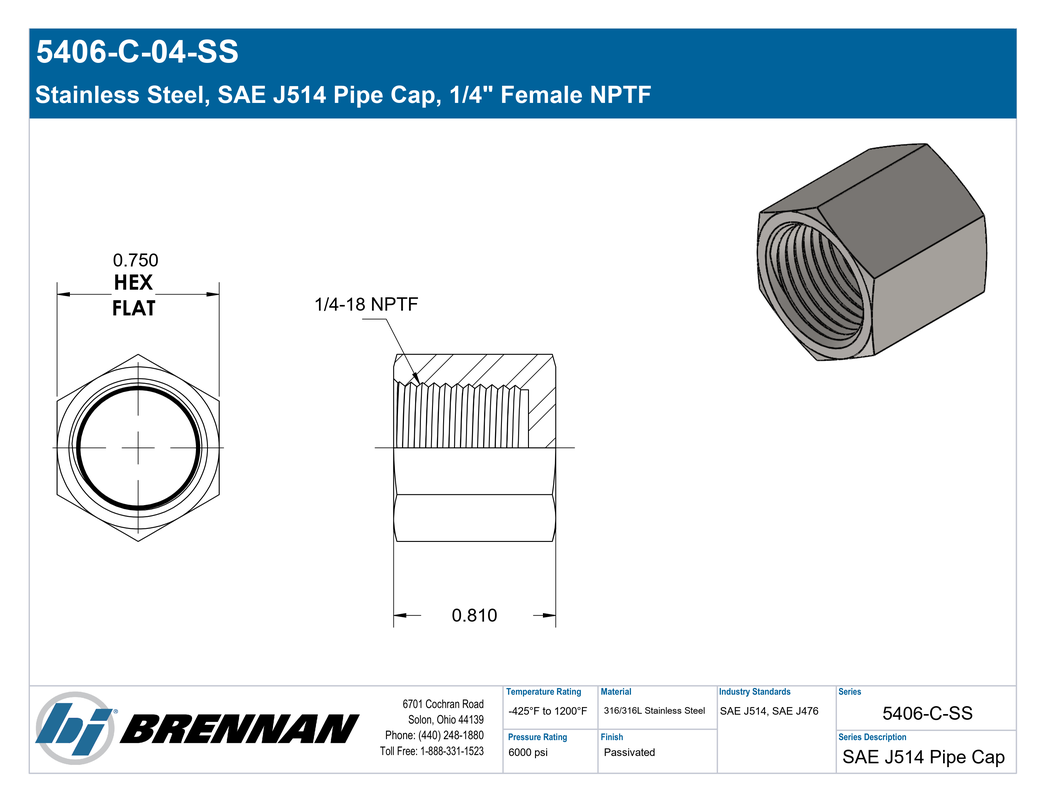

Stainless Steel, SAE J514 Pipe Cap, 1/4" Female NPTF
Specifications
| Connection Details | {"Connection Type":"Female NPTF","Pipe Size":"1/4\"","Thread Type":"1/4-18 NPTF","Standard":"SAE J476","Connection Standard":"SAE J476","Role":"Pipe Connection","Connection Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Shape Type":"Cap","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.08 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"1/4 HPC-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Pipe Cap |
| Technical Series Configuration | SAE J476 Female NPTF Pipe Cap |
| Side 1 Connection Type | Female NPTF |
| Shape | Cap/Plug |
| Product Type | Fittings |
