Attributes
| Part Number | 7640-16-33-O |
|---|---|
| Is Series Page | 0 |
Description

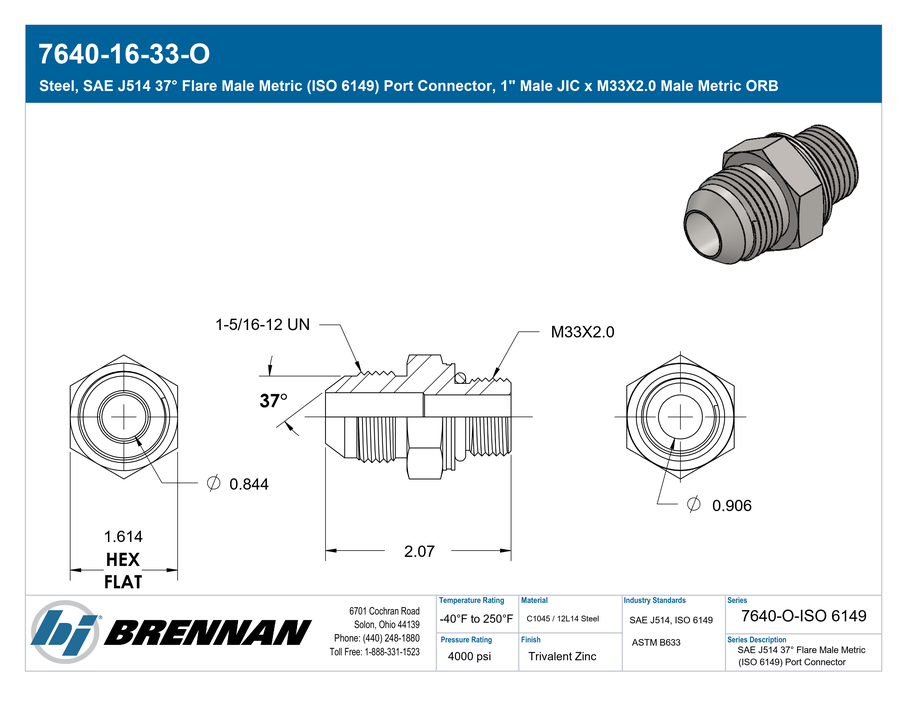

Steel, SAE J514 37° Flare Male Metric (ISO 6149) Port Connector, 1" Male JIC x M33X2.0 Male Metric ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male Metric ORB","Side 2 Thread Type":"M33X2.0","Side 2 Standard":"ISO 6149","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"8900-33"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"1.614","Weight":"0.48 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"16M33F87OMXS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Male Metric O-Ring Boss |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 6149 Male Metric O-Ring Boss Port Connector |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male Metric ORB |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
