Attributes
| Part Number | 1405-16-16 |
|---|---|
| Is Series Page | 0 |
Description

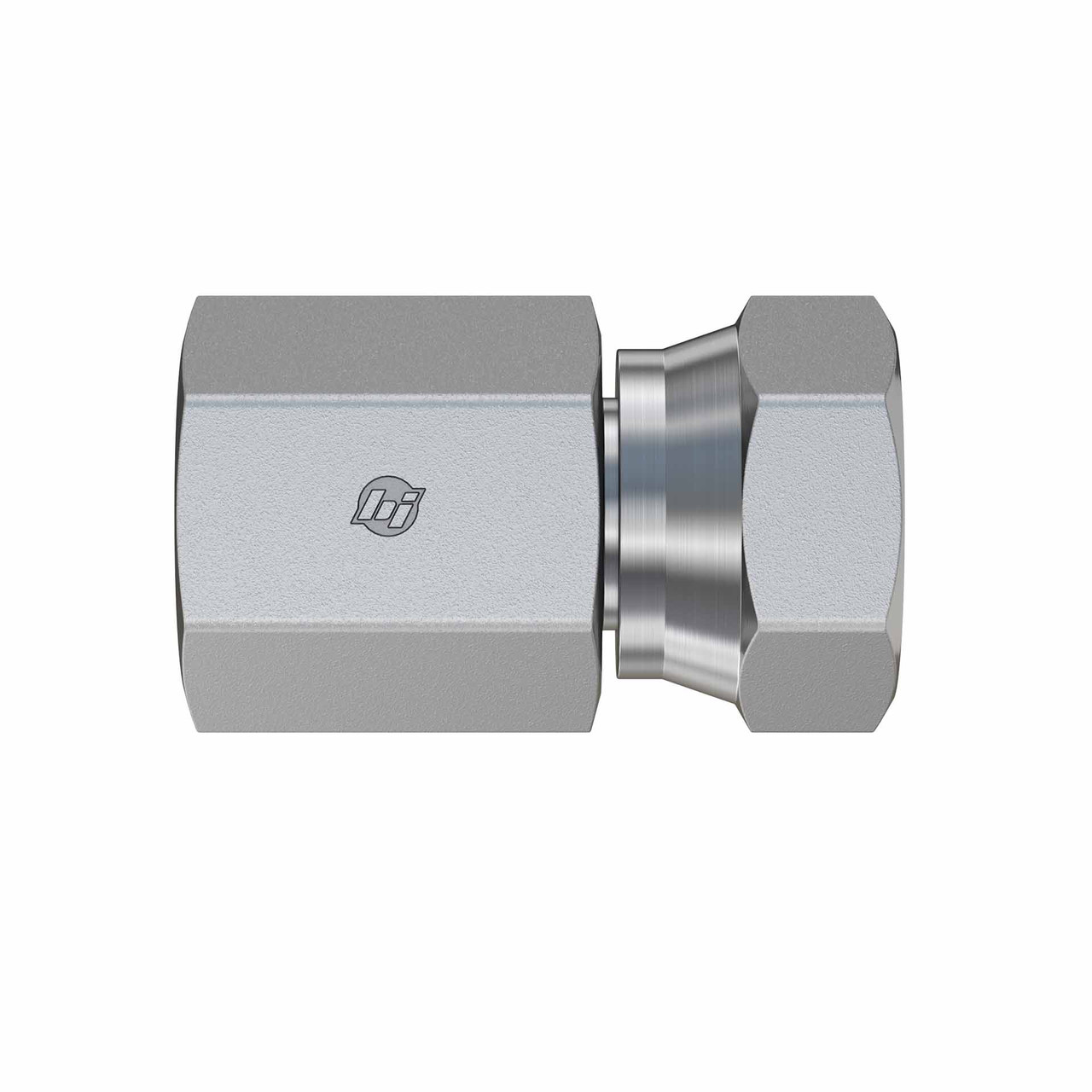

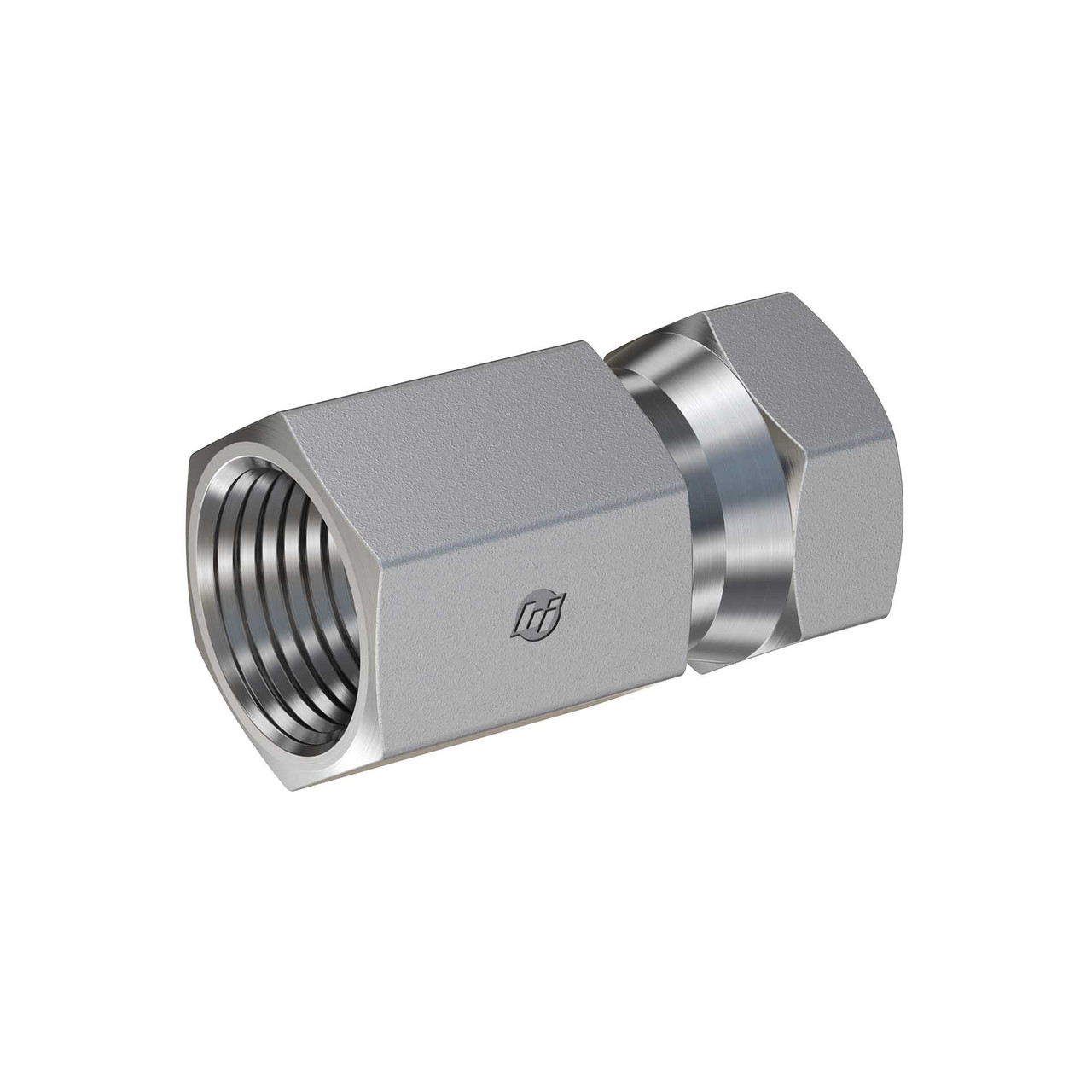

Steel, SAE J514 NPSM Swivel Female Connector, 1" Female NPTF x 1" Female NPSM Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPTF","Side 1 Pipe Size":"1\"","Side 1 Thread Type":"1-11-1/2 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female NPSM Swivel","Side 2 Pipe Size":"1\"","Side 2 Thread Type":"1-11-1/2 NPSM","Side 2 Standard":"SAE J514","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Swivel Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.60 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2046-16-16S","Parker Hose Part Number":"0207-16-16-S","Parker TFD Part Number":"0207-16-16","SAE J514 Part Number":"SAE J514 16-16 140131C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female Pipe x Female Pipe Swivel |
| Technical Series Configuration | SAE J476 Female NPTF x Female NPSM Swivel Connector |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | Female NPSM Swivel |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

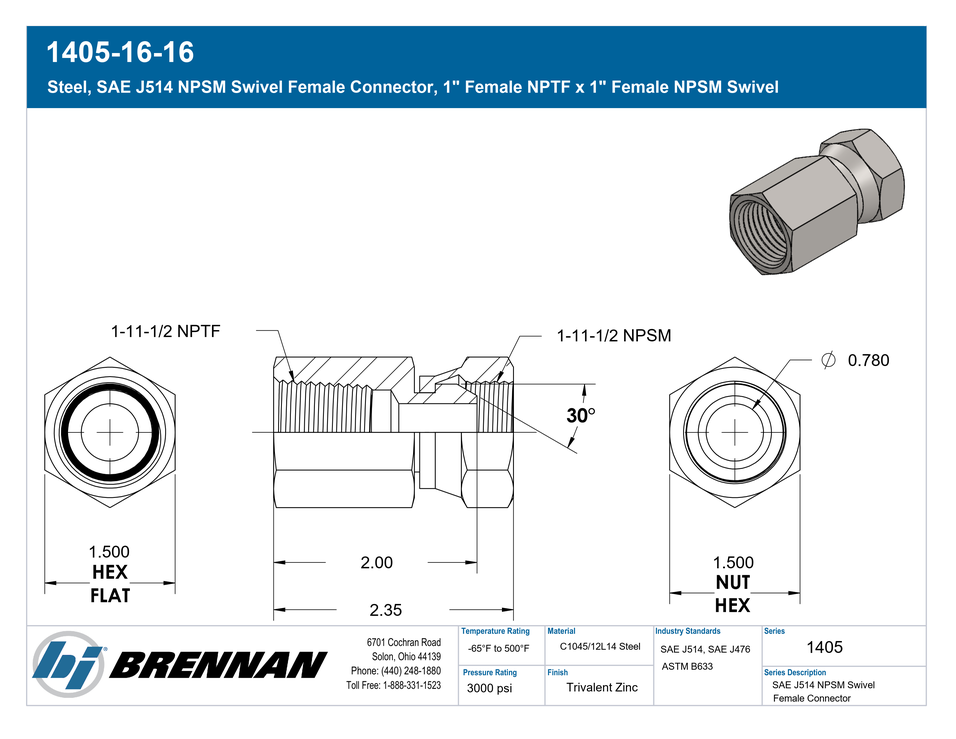

Specification Sheet
Open PDF
