Attributes
| Part Number | 2705-04-06-B |
|---|---|
| Is Series Page | 0 |
Description
Brass, SAE J514 Flared Tube Female Bulkhead, 1/4" Female NPTF x 3/8" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPTF","Side 1 Pipe Size":"1/4\"","Side 1 Thread Type":"1/4-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"3/8\"","Side 2 Thread Type":"9/16-18 UNF","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Bulkhead","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish","Feature":"Bulkhead"} |
| Dimensions | {"Hex/Wrench":"0.812","Weight":"0.16 lb"} |
| Performance Specifications | {"Working Pressure":"3300 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"13200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"6 WGTX-B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female Pipe x Male JIC Bulkhead |
| Technical Series Configuration | SAE J476 Female NPTF x SAE J514 Male JIC Tube Bulkhead |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | Male JIC |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

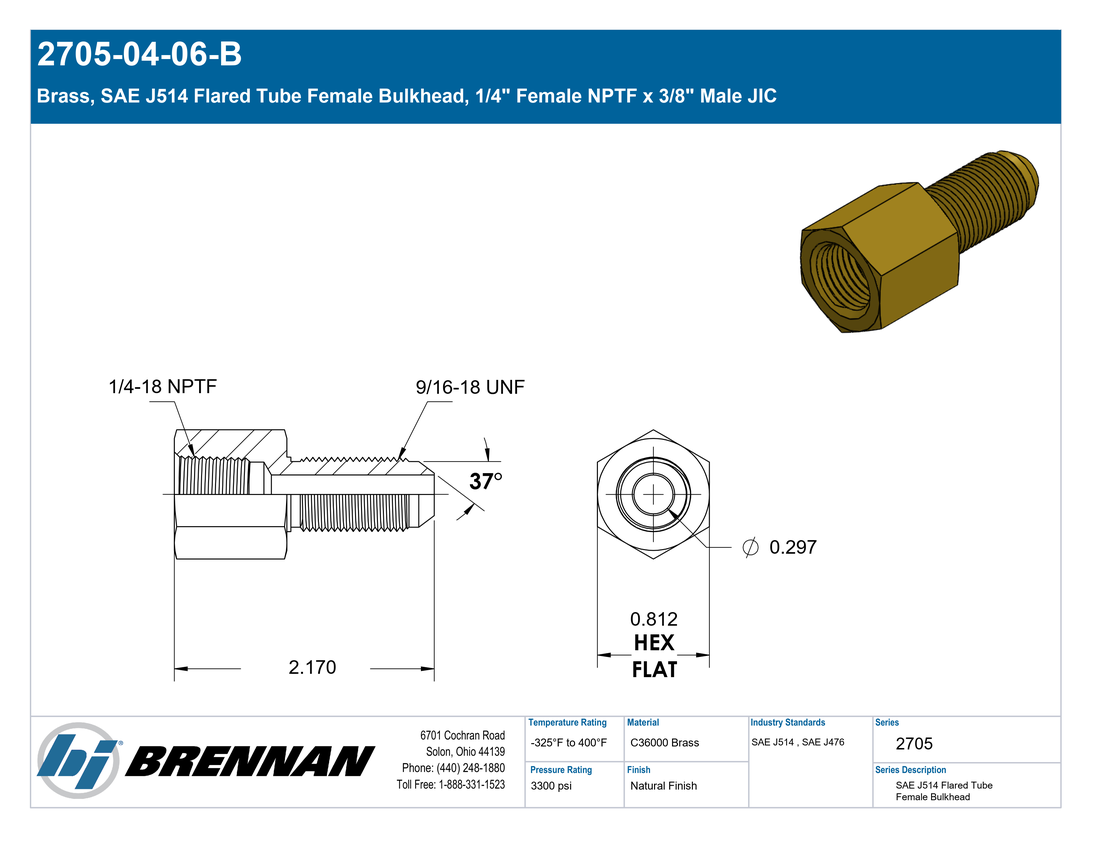

Specification Sheet
Open PDF
