Attributes
| Part Number | 6405-20-08-O |
|---|---|
| Is Series Page | 0 |
Description

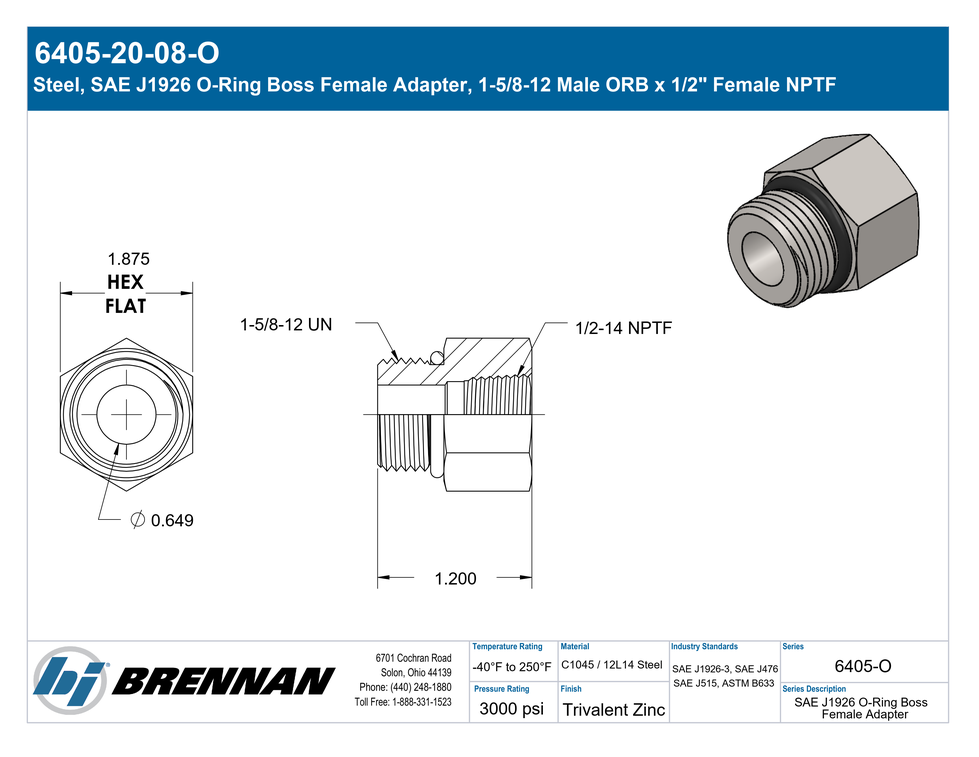

Steel, SAE J1926 O-Ring Boss Female Adapter, 1-5/8-12 Male ORB x 1/2" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORB","Side 1 Thread Type":"1-5/8-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4000-20","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1/2\"","Side 2 Thread Type":"1/2-14 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Adapter","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.71 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2216-8-20S","Parker Hose Part Number":"0502-20-8","Parker TFD Part Number":"20-1/2 F5OG-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male ORB x Female Pipe |
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss x SAE J476 Female NPTF Adapter |
| Side 1 Connection Type | Male ORB |
| Side 2 Connection Type | Female NPTF |
| Shape | Straight |
| Product Type | Fittings |
