Attributes
| Part Number | 5406-P-08-B |
|---|---|
| Is Series Page | 0 |
Description
Brass, SAE J531 Pipe Hex Head Plug, 1/2" Male NPTF
Specifications
| Connection Details | {"Connection Type":"Male NPTF","Pipe Size":"1/2\"","Thread Type":"1/2-14 NPTF","Standard":"SAE J476","Connection Standard":"SAE J476","Role":"Pipe Connection","Connection Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.20 lb"} |
| Performance Specifications | {"Working Pressure":"3900 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"15600 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2082-8B","Parker Hose Part Number":"01CP-8-B","Parker TFD Part Number":"1/2 HP-B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Hex Head Pipe Plug |
| Technical Series Configuration | SAE J531 Hexagon Outside Head Pipe Plug |
| Side 1 Connection Type | Male NPTF |
| Shape | Cap/Plug |
| Product Type | Fittings |

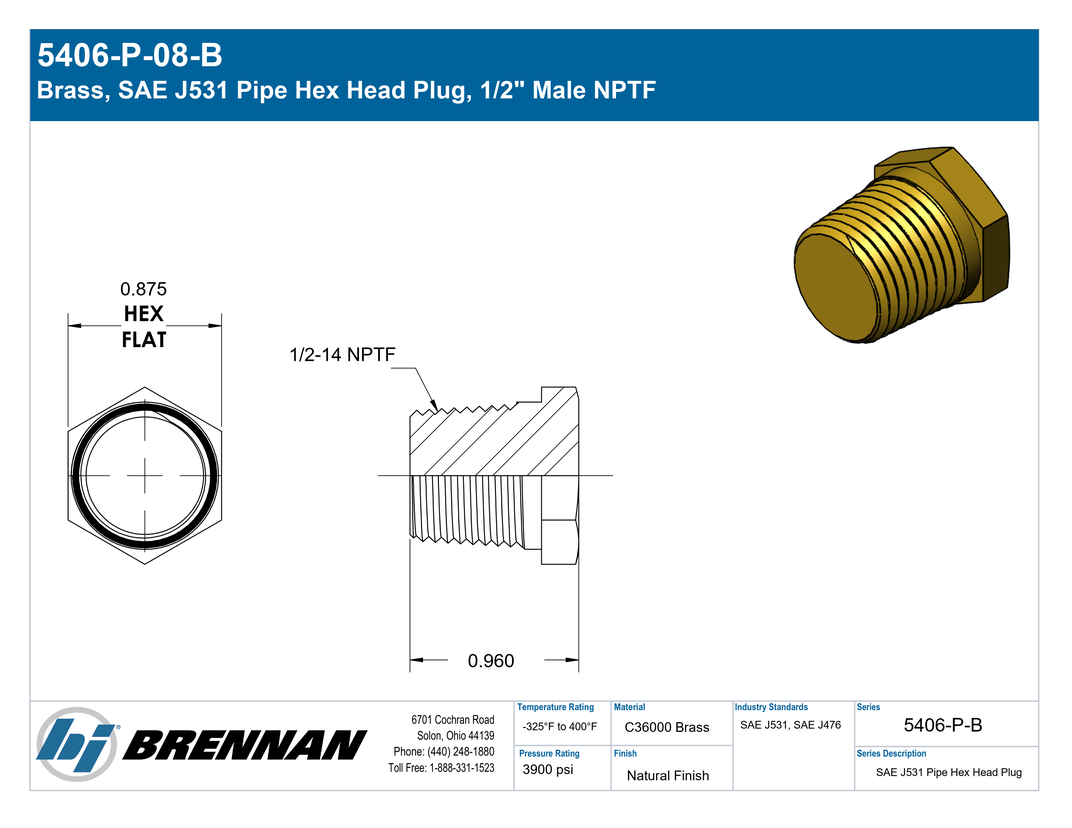

PDF Documents
