Attributes
| Part Number | 0319-12 |
|---|---|
| Is Series Page | 0 |
Description

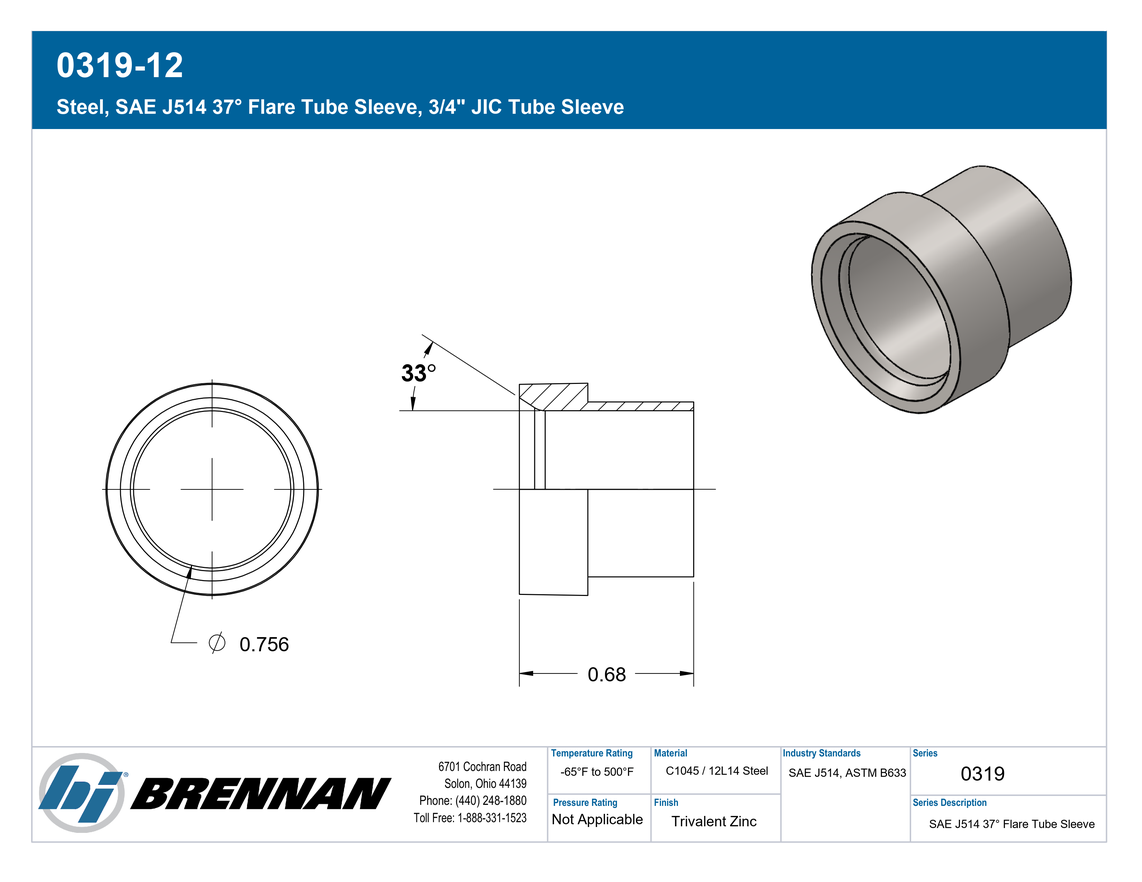

Steel, SAE J514 37° Flare Tube Sleeve, 3/4" JIC Tube Sleeve
Specifications
| Connection Details | {"Connection Type":"JIC Tube Sleeve","Tube OD":"3/4\"","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Sleeve","Shape Type":"Tube Sleeve","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.03 lb"} |
| Performance Specifications | {"Temperature Range":"-65°F to 500°F"} |
| Cross References | {"Aeroquip Part Number":"900605-12S","Parker Hose Part Number":"06S-12","Parker TFD Part Number":"12 TX-S","SAE J514 Part Number":"SAE J514 12 070115C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | JIC Tube Sleeve |
| Technical Series Configuration | SAE J514 Tube Sleeve |
| Side 1 Connection Type | JIC Tube Sleeve |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
