Attributes
| Part Number | 5652-06-06-06-06-B |
|---|---|
| Is Series Page | 0 |
Description
Brass, SAE J514 Pipe Female Cross, 3/8" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPTF","Side 1 Pipe Size":"3/8\"","Side 1 Thread Type":"3/8-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"3/8\"","Side 2 Thread Type":"3/8-18 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection","Side 3 Connection Type":"Female NPTF","Side 3 Pipe Size":"3/8\"","Side 3 Thread Type":"3/8-18 NPTF","Side 3 Standard":"SAE J476","Side 3 Role":"Pipe Connection","Side 4 Connection Type":"Female NPTF","Side 4 Pipe Size":"3/8\"","Side 4 Thread Type":"3/8-18 NPTF","Side 4 Standard":"SAE J476","Side 4 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cross","Shape Type":"Female Cross","Primary Material":"Brass","Material Grade":"CA377","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.36 lb"} |
| Performance Specifications | {"Working Pressure":"2900 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"11600 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2080-6-6B","Parker TFD Part Number":"3/8 KMMOO-B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female Pipe x Female Pipe x Female Pipe x Female Pipe |
| Technical Series Configuration | SAE J476 Female NPTF x Female NPTF x Female NPTF x Female NPTF Cross |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | Female NPTF |
| Shape | Cross |
| Product Type | Fittings |
PDF Documents

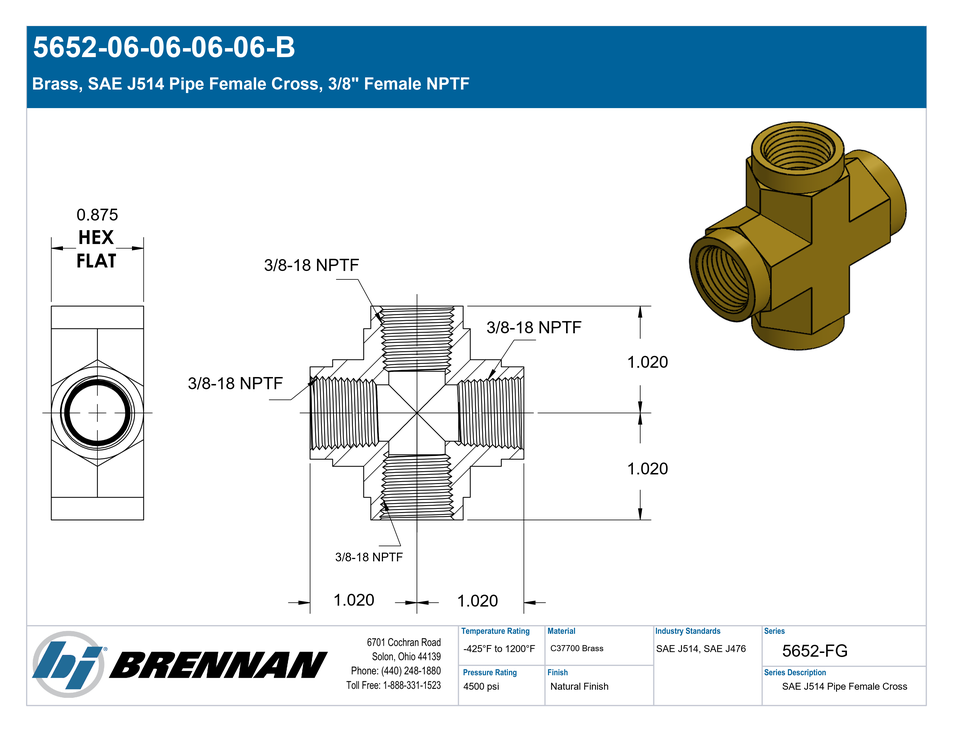

Specification Sheet
Open PDF
