Attributes
| Part Number | 6801-LL-20-20-NWO-FG |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare 90° Extra Long Adjustable Port Elbow, 1-1/4" Male JIC x 1-5/8-12 Male Adjustable ORB
Specifications
| Series Configuration | Male JIC x Male Adjustable ORB |
|---|---|
| Technical Series Configuration | SAE J514 Male JIC Tube x SAE J1926-3 Male Adjustable O-Ring Boss 90° Elbow, Extra-Long Drop |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male Adjustable ORB |
| Shape | 90° Elbow |
| Product Type | Fittings |
PDF Documents

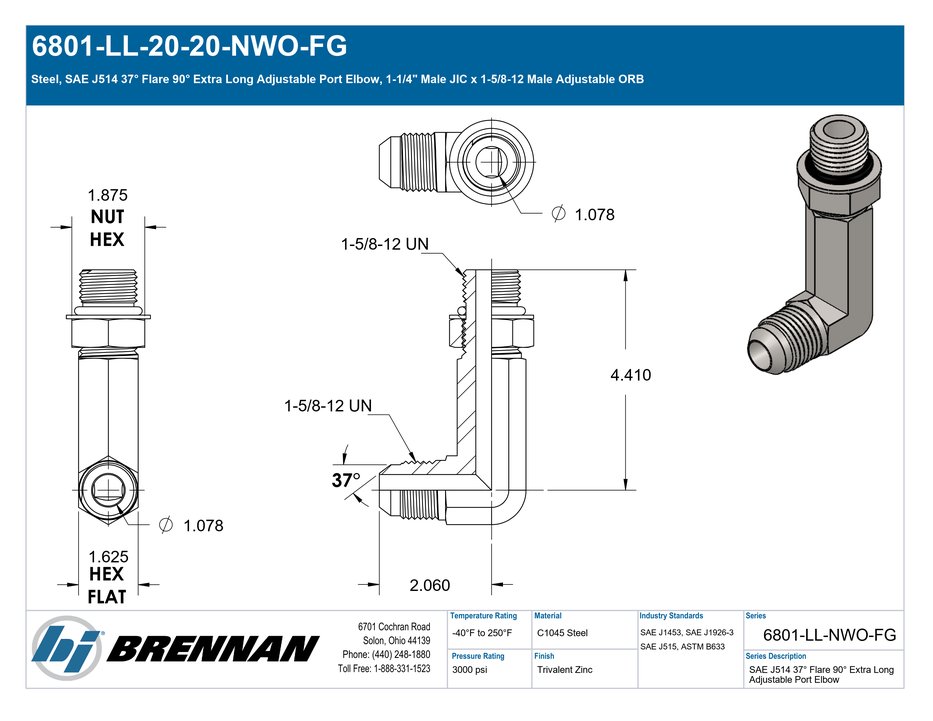

Specification Sheet
Open PDF
