Attributes
| Part Number | 6405-16-24-O-SS |
|---|---|
| Is Series Page | 0 |
Description

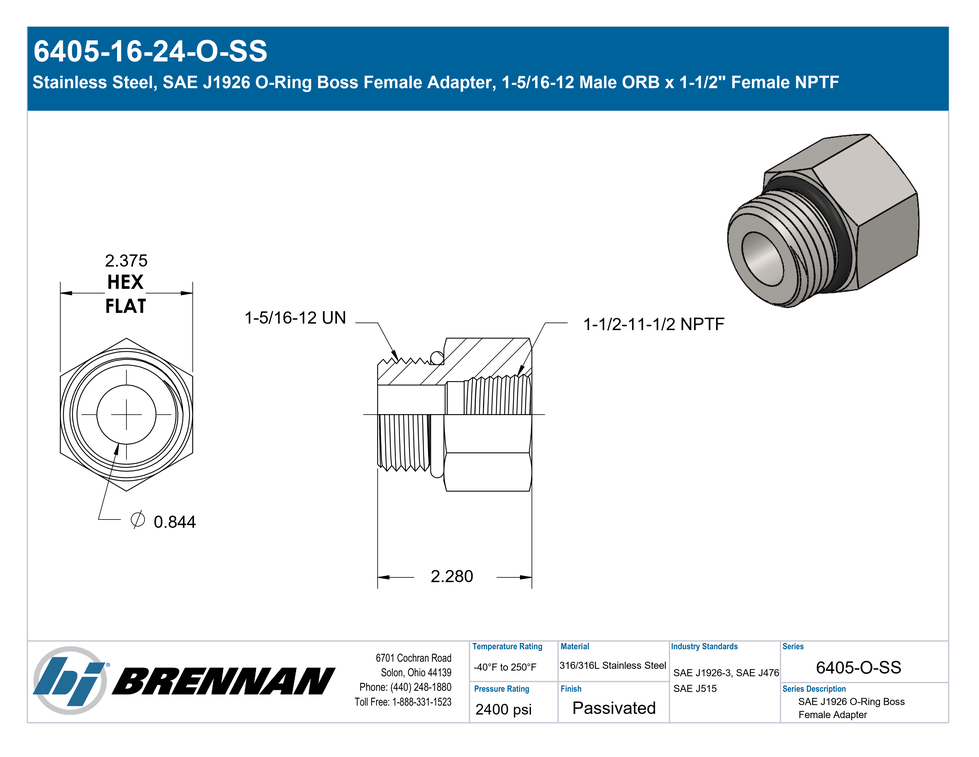

Stainless Steel, SAE J1926 O-Ring Boss Female Adapter, 1-5/16-12 Male ORB x 1-1/2" Female NPTF
Specifications
| Series Configuration | Male ORB x Female Pipe |
|---|---|
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss x SAE J476 Female NPTF Adapter |
| Side 1 Connection Type | Male ORB |
| Side 2 Connection Type | Female NPTF |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
