Attributes
| Part Number | 7002-04-02-SS-BS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 37° Flare BSPP Type (D) Bonded Seal Port/Line Adapter, 1/4" Male JIC x 1/8-28 Male BSPP 60° Line/Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1/4\"","Side 1 Thread Type":"7/16-20 UNF","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male BSPP 60° Line/Port","Side 2 Thread Type":"G - 1/8-28","Side 2 Standard":"ISO 8434-6, ISO 1179","Side 2 Role":"Line/Port Connection","Side 2 Replacement Gasket":"9900-02"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated","Feature":"Bonded Seal","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.630","Weight":"0.05 lb"} |
| Performance Specifications | {"Working Pressure":"5100 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"20400 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male BSPP (Type D) Bonded Seal |
| Technical Series Configuration | SAE J514 Male JIC Tube x ISO 1179 Type (D) Male BSPP Port/Line Adapter With Bonded Seal |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male BSPP 60° Line/Port |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

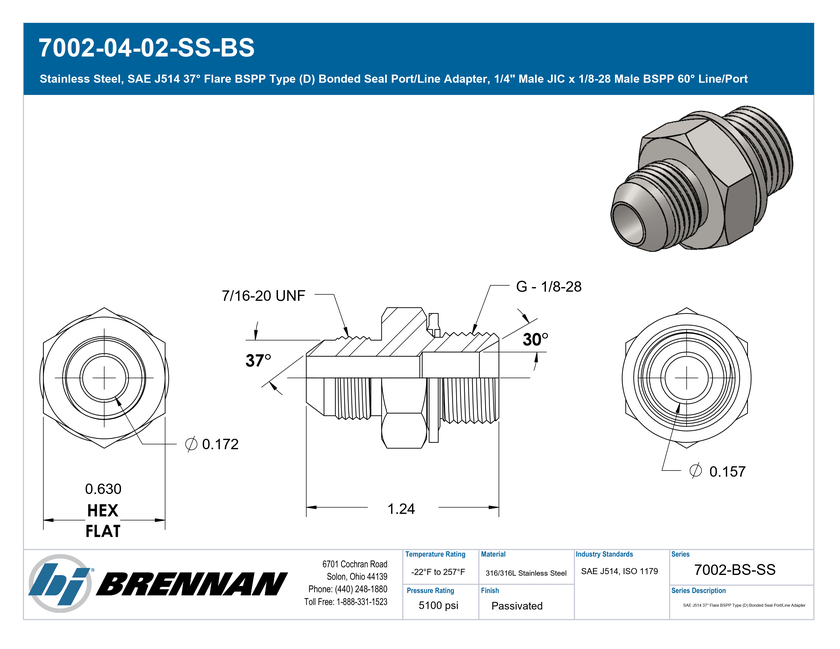

Specification Sheet
