Attributes
| Part Number | 5602-08-08-08-B |
|---|---|
| Is Series Page | 0 |
Description
Brass, SAE J514 Pipe Male Run Tee, 1/2" Male NPTF 30° x 1/2" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1/2\"","Side 1 Thread Type":"1/2-14 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1/2\"","Side 2 Thread Type":"1/2-14 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection","Side 3 Connection Type":"Female NPTF","Side 3 Pipe Size":"1/2\"","Side 3 Thread Type":"1/2-14 NPTF","Side 3 Standard":"SAE J476","Side 3 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Male Run Tee","Primary Material":"Brass","Material Grade":"CA377","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.49 lb"} |
| Performance Specifications | {"Working Pressure":"1900 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"7600 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2092-8-8B","Parker TFD Part Number":"1/2 MRO-B","SAE J514 Part Number":"SAE J514 8-8-8 140424B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male Pipe x Female Pipe x Female Pipe |
| Technical Series Configuration | SAE J476 Male NPTF x Female NPTF x Female NPTF Run Tee |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Female NPTF |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents

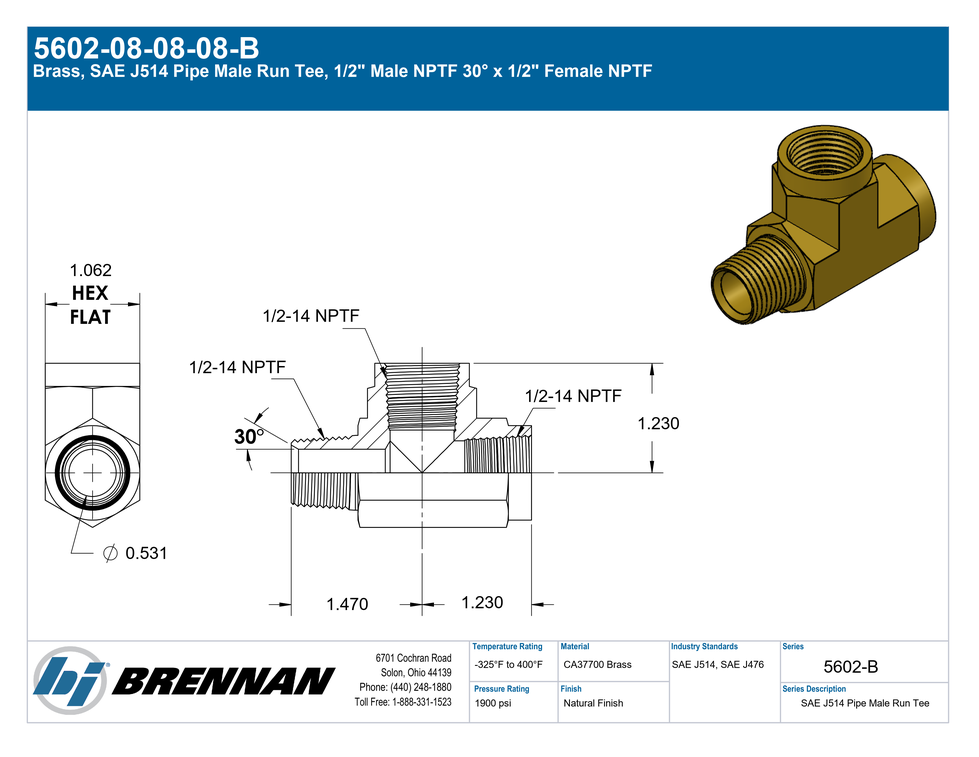

Specification Sheet
