Attributes
| Part Number | 6565-24-20 |
|---|---|
| Is Series Page | 0 |
Description

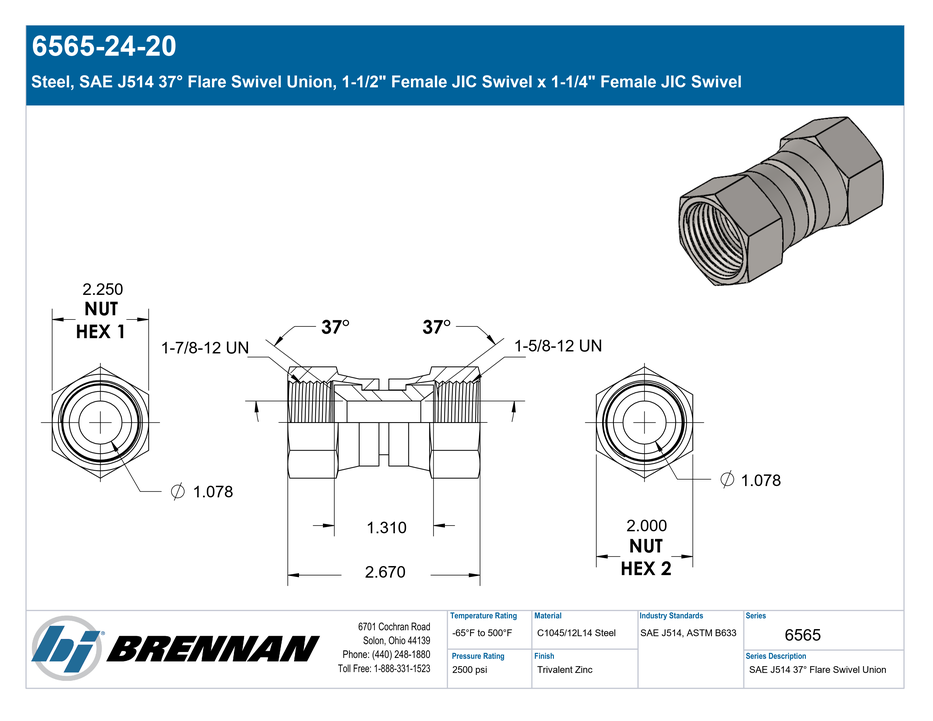

Steel, SAE J514 37° Flare Swivel Union, 1-1/2" Female JIC Swivel x 1-1/4" Female JIC Swivel
Specifications
| Series Configuration | Female JIC Swivel x Female JIC Swivel |
|---|---|
| Technical Series Configuration | SAE J514 Female JIC Swivel Tube x Female JIC Swivel Tube Union |
| Side 1 Connection Type | Female JIC Swivel |
| Side 2 Connection Type | Female JIC Swivel |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
